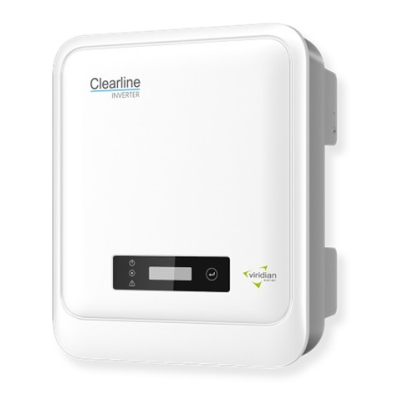

Viridian Clearline Inverter - Solar Inverter 6.0kW with Integrated DC Isolator Switch - Dual MPPT

Viridian Clearline Inverter - Solar Inverter 6.0kW with Integrated DC Isolator Switch - Dual MPPT is a lightweight, high-efficiency solar inverter tailored for modern UK residential PV systems up to 9 kWp. Designed in the UK and built for local installers, it offers 6,000 W of continuous AC output, superior monitoring capabilities, and a silent, fan-less design with a peak efficiency of 97.9%.

This 6kW single-phase solar inverter is equipped with two independent MPPT trackers (each 16 A / 40–560 V), making it the ideal solution for split-orientation or mixed-roof systems. Its compact, 13.4 kg IP66-rated housing and 350 × 410 × 143 mm dimensions make it suitable for lofts, garages, or external walls, without compromising on power or reliability.

Installers benefit from a factory-fitted rotary DC isolator switch (BS 7671 compliant), plug-and-play AC connectors, and MC4 inputs for fast commissioning. Optional smart connectivity and G100 export limitation functionality help future-proof installations for evolving grid standards.

Key Features and Benefits:

• 6,000 W AC output – Supports solar arrays up to 9 kWp DC
• Dual MPPT – Two independent 16 A trackers (40–560 V) for maximum yield on split or shaded roofs
• High conversion efficiency – 97.9% peak / 97.4% European
• Integrated DC isolator – Factory-installed rotary switch ensures BS 7671 compliance
• Fan-less, IP66 design – Silent natural convection cooling with < 25 dB noise output
• Smart commissioning – LCD + LED interface for on-site setup; optional app-based control
• Wi-Fi/LAN connectivity (optional) – Enables real-time monitoring, firmware updates, and export limitation via Viridian app
• Export limitation ready – Optional CT enables G100 compliance without extra gateways
• Installer-friendly – Lightweight design, plug-and-play AC, and MC4 inputs for faster installs
• UK support & 10-year warranty – Local assistance and fast access to spares from Viridian’s Cambridge team

Technical Specifications:

Download the datasheet for Viridian Clearline Inverter - Solar Inverter 6.0kW with Integrated DC Isolator Switch - Dual MPPT here
