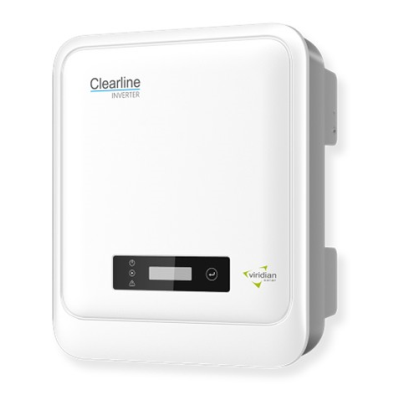

Viridian Clearline Inverter - Solar Inverter 5.0kW with Integrated DC Isolator Switch - Dual MPPT

Viridian Clearline Inverter - Solar Inverter 5.0kW with Integrated DC Isolator Switch - Dual MPPT is a high-efficiency, single-phase solar inverter designed for UK residential photovoltaic systems up to 7.5 kWp. Manufactured with installer convenience in mind, it delivers 5,000 W of continuous AC output and features built-in smart controls, reliable surge protection, and a compact IP66-rated housing.

This 5kW single-phase solar inverter is ideal for installations on split-orientation or partially shaded roofs, thanks to its two independent MPPTs (each rated at 16 A, with a wide 40–560 V input range). Lightweight and whisper-quiet, the unit is cooled via natural convection with no moving parts, making it suitable for lofts, garages, or external wall installations.

Integrated DC isolation (BS 7671 compliant), plug-and-play AC connections, and MC4-compatible DC inputs ensure a fast and safe installation process. Smart WiFi or LAN connectivity and optional G100 export limitation support make it future-proof for evolving grid and DNO requirements.

Key Features and Benefits:

• 5,000 W AC output – Suitable for PV systems up to 7.5 kWp DC
• Dual MPPT – Two 16 A independent trackers (40–560 V) to optimise performance on split roofs
• High efficiency – 97.9% peak efficiency / 97.3% European
• Factory-installed DC isolator – Complies with BS 7671 for streamlined, safe commissioning
• Fan-less, IP66 enclosure – Silent operation with < 25 dB noise emission
• Smart interface – Built-in LCD and LED display for setup and monitoring
• Optional Wi-Fi/LAN – Supports app-based performance tracking and firmware updates
• Export limitation ready – Compatible with CT clamps for G100-compliant systems
• Easy to install – Plug-and-play AC connector and MC4 DC inputs reduce install time
• UK technical support & 10-year warranty – Local assistance from Viridian’s Cambridgeshire HQ

Technical Specifications:

Download the datasheet for Viridian Clearline Inverter - Solar Inverter 5.0kW with Integrated DC Isolator Switch - Dual MPPT here

For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
