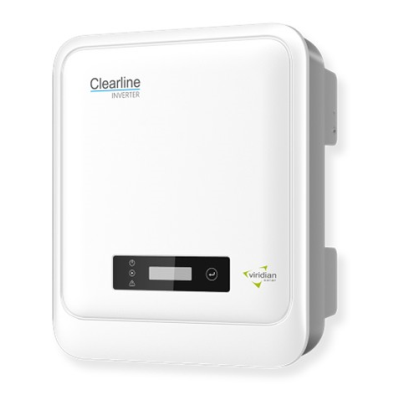

Viridian Clearline Inverter - Solar Inverter 3.6kW with Integrated DC Isolator Switch - Dual MPPT

Viridian Clearline Inverter - Solar Inverter 3.6kW with Integrated DC Isolator Switch - Dual MPPT is a compact, high-performance solar inverter built for split-orientation residential rooftops and small commercial PV systems across the UK. Combining dual 16 A MPPT inputs, a peak efficiency of 97.9%, and a factory-fitted DC isolator switch, it ensures professional-grade output in a low-profile 12.8 kg design.

This 3.6kW single-phase solar inverter supports rooftop PV systems up to 5.4 kWp. Its dual MPPT inputs (40–560 V, 16 A each) maximise output from east-west split or multi-aspect installations. Measuring only 350 × 410 × 143 mm, the inverter fits neatly into plant rooms or loft spaces and offers silent, maintenance-free performance with no fan or moving parts.

With an IP66-rated aluminium housing and natural convection cooling, the inverter operates reliably across all UK weather conditions. Optional Wi-Fi or LAN connectivity provides smart commissioning, monitoring, and export limitation features via the Viridian app (module required).

Key Features and Benefits:

• 3,600 W nominal AC output – Supports solar arrays up to 5.4 kWp DC
• Dual MPPT inputs – Two independent 16 A inputs with 40–560 V range
• Maximum efficiency of 97.9% – European efficiency rated at 97.0%
• Factory-integrated DC isolator – Rotary switch meets BS 7671 compliance
• Silent operation – Fan-less cooling keeps noise under 25 dB
• IP66-rated enclosure – Durable aluminium body for indoor or outdoor use
• Flexible installation – Plug-and-play AC connector and MC4 DC inputs
• Advanced string design support – Dual MPPTs allow for mixed module orientations (e.g. east-west arrays)
• Optional smart features – Wi-Fi/LAN module enables remote updates, live data, and export limitation setup
• UK-based support – Backed by a 10-year warranty and Viridian’s Cambridge technical team

Technical Specifications:

Download the datasheet for Viridian Clearline Inverter - Solar Inverter 3.6kW with Integrated DC Isolator Switch - Dual MPPT here

For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
