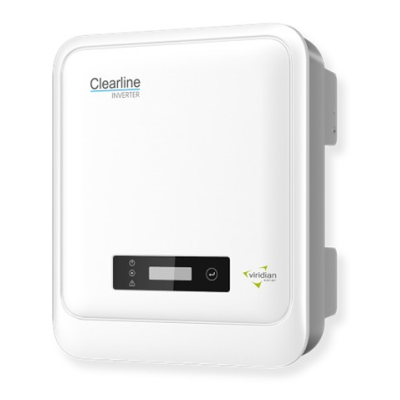

Viridian Clearline Inverter - Solar Inverter 3.0kW with Integrated DC Isolator Switch - Dual MPPT

Viridian Clearline Inverter - Solar Inverter 3.0kW with Integrated DC Isolator Switch - Dual MPPT is a premium, high-efficiency inverter designed for split-roof residential solar installations across the UK. With dual MPPT tracking, a peak efficiency of 97.9%, and silent operation, it provides an ideal solution for properties with variable panel orientations or shading.

This 3kW single-phase inverter includes a factory-installed rotary DC isolator switch for quick, compliant installations under BS 7671. Its dual MPPT inputs (each 16 A) allow for two independently optimised PV strings, perfect for east-west split arrays. Supporting systems up to 4.5 kWp, it ensures maximum yield from every part of the roof.

At just 12.8 kg and housed in a rugged IP66 aluminium enclosure, the inverter is weatherproof, maintenance-free, and passively cooled for < 25 dB noise output. Optional Wi-Fi or LAN connectivity with the Viridian app enables remote commissioning, live system monitoring, and export limitation setup.

Key Features and Benefits:

• 3,000 W nominal AC output – Powers PV systems up to 4.5 kWp
• Dual MPPT inputs – Supports two independent strings (40–560 V, 16 A each)
• Peak efficiency of 97.9% – European efficiency 97.0%
• Integrated rotary DC isolator – Fully compliant with BS 7671
• Passive, fan-less cooling – Operates silently at under 25 dB
• Smart commissioning – LCD, LED display, and optional app control via Wi-Fi/LAN kit
• Installer-friendly design – Plug-and-play AC connector and MC4 DC inputs
• Advanced protection – AFCI, residual current monitoring, AC/DC surge protection, grid-code anti-islanding
• Export limitation ready – Optional CT allows G100 compliance without third-party gateways
• UK-based support – Backed by Viridian’s technical team with 10-year warranty coverage

Technical Specifications:

Download the datasheet for Viridian Clearline Inverter - Solar Inverter 3.0kW with Integrated DC Isolator Switch - Dual MPPT here

For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
