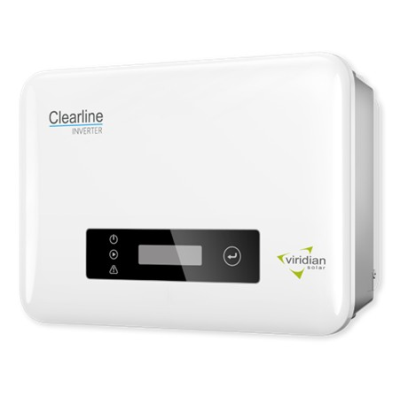

Viridian Clearline Inverter - Solar Inverter 2.5kW with Integrated DC Isolator Switch - Single MPPT

Viridian Clearline Inverter - Solar Inverter 2.5kW with Integrated DC Isolator Switch - Single MPPT is a high-performance, compact solar inverter designed for domestic PV installations up to 5 kWp across the UK. Offering premium build quality, a fan-less cooling system, and a peak efficiency of 97.6%, it delivers quiet, reliable power conversion in a sleek, weather-resistant chassis.

Engineered for small residential solar arrays, this 2.5kW single-phase inverter includes a factory-fitted rotary DC isolator switch for BS 7671 compliance, and a single MPPT tracker that supports input voltages from 40 to 550 V. Weighing just 4.6 kg and measuring 306 × 218 × 119 mm, the unit can be mounted and commissioned by one person—saving labour time and cost.

Thanks to its natural convection cooling system, the Viridian Clearline 2.5kW inverter runs silently (< 20 dB), with no moving parts for minimal maintenance and increased system longevity. Optional Wi-Fi or LAN connectivity enables real-time performance monitoring and export limitation setup through the Viridian app.

Key Features and Benefits:

• 2,500 W nominal output – Ideal for PV systems up to 5 kWp
• Peak efficiency of 97.6% – Maximises solar energy harvest and system ROI
• Integrated rotary DC isolator – Speeds installation and ensures compliance with BS 7671
• Single MPPT – 16 A input current, 40–550 V input range
• IP66-rated aluminium housing – Indoor/outdoor ready, withstands UK weather (-25 °C to +60 °C, 0–100% RH)
• Silent cooling – Fan-less design ensures noise levels stay below 20 dB
• Installer-friendly – Plug-and-play AC connector and MC4 inputs simplify setup
• Low standby consumption – Less than 3 W for minimal energy waste
• Advanced protection features – AFCI, residual current monitoring, AC/DC surge protection, anti-islanding
• UK-based support & 10-year warranty – Fast access to spares and design advice from Viridian’s Cambridge team

Technical Specifications:

Download the datasheet for Viridian Clearline Inverter - Solar Inverter 2.5kW with Integrated DC Isolator Switch - Single MPPT here

For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
