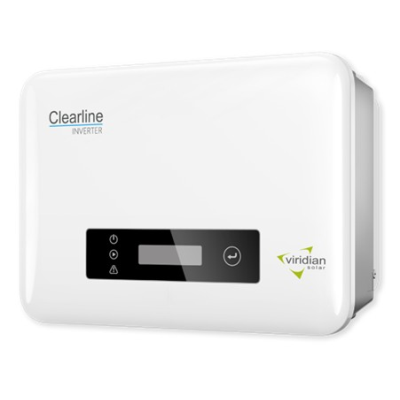

Viridian Clearline Inverter - Solar Inverter 1.0kW with Integrated DC Isolator Switch - Single MPPT

Viridian Clearline Inverter - Solar Inverter 1kW with Integrated DC Isolator Switch - Single MPPT is an ultra-efficient, compact solar power inverter designed specifically for small-scale residential PV systems in the UK. Engineered for professional solar installers, it delivers a peak efficiency of 97.1% and supports up to 2 kWp solar arrays, making it the ideal choice for rooftops with limited space.

Weighing just 4.6 kg and measuring only 306 × 218 × 119 mm, this lightweight inverter can be quickly installed and commissioned by a single person. It features a built-in DC isolator switch, ensuring full compliance with BS 7671, and boasts a rugged IP66-rated aluminium chassis, suitable for both indoor and outdoor installations across the UK's diverse weather conditions.

This 1kW single-phase solar inverter with single MPPT offers whisper-quiet operation thanks to fan-less, natural convection cooling. Its low standby power consumption (< 3 W) and comprehensive safety features ensure low-maintenance, high-reliability performance for homeowners and installers alike.

Key Features and Benefits:

• Factory-integrated DC isolator – BS 7671 compliant rotary switch for faster, safer installations
• Single MPPT – 16 A tracker supports input voltages between 40–550 V
• High peak efficiency – 97.1% maximum efficiency for optimal energy harvest
• Silent operation – Passive cooling design with noise levels below 20 dB
• Durable IP66 enclosure – Operates in harsh UK conditions: -25 °C to +60 °C, 0–100% humidity
• Smart connectivity – Optional Wi-Fi & LAN module for real-time monitoring via Viridian app
• Low standby consumption – Less than 3 watts to reduce parasitic losses
• Comprehensive safety features – Includes PV insulation resistance detection, residual current monitoring, AC + DC Type III surge protection, and anti-islanding
• UK-based support – Backed by Viridian’s Cambridge-based technical team and 10-year warranty

Technical Specifications:

Download the datasheet for Viridian Clearline Inverter - Solar Inverter 1kW with Integrated DC Isolator Switch - Single MPPT here

For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
