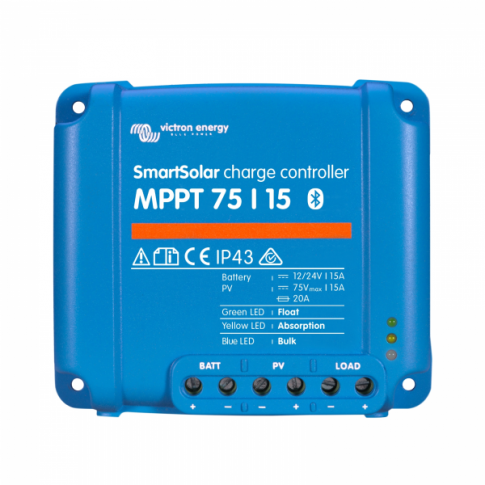

Victron SmartSolar MPPT 75/15 15A solar charge controller for solar panels up to 220W (12V) / 440W (24V) up to 75V (Bluetooth inbuilt)

Specifications:

- The most advanced MPPT technology to ensure high efficiency (> 95%) of your solar system
- Fully automated operation and auto 12 / 24V selection
- 3 pairs of terminals (solar panel, battery, load) for wires up to 6mm2
- Inbuilt bluetooth
- Max solar panel voltage: 75V
- Max solar panel power: 220W (12V) / 440W (24V)
- Temperature sensor for automatic compensation (-16mV °C resp. -32mV °C)
- Comprehensive electronic protection features
- Communication port: RS232 / TTL for VE Direct accessories
- Self-consumption: 12V: 25mA / 24V: 15mA
- Load Current: 15A
- Working temperature: -30°C to +60°C
- IEC/EN certified
- Enclosure: IP43 (electronic components) / IP22 (connection area)
- Pollution Degree rating: PD3
- Dimensions: 100 x 113 x 40 mm
- Mounting dimensions: 99 x 84 mm
- Weight: 500g
- 4 x mounting holes for ease of installation
