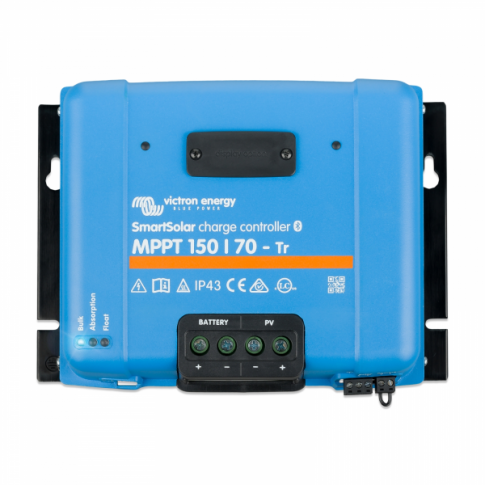

Victron SmartSolar MPPT 150/70 70A solar charge controller for solar panels up to 1000W (12V) / 2000W (24V) / 3000W (36V) / 4000W (48V) up to 150V (Bluetooth inbuilt)

Specifications:

- The most advanced MPPT technology to ensure high efficiency (> 95%) of your solar system
- Fully automated operation and auto 12 / 24 / 36* / 48V selection
- 2 pairs of terminals (solar panel, battery) for wires up to 35mm2
- Inbuilt bluetooth
- Programmable relay: AC rating: 240VAC /4A , DC rating: 4A up to 35VDC, 1A up to 60VDC
- Max solar panel voltage: 150V
- Max solar panel power: 1000W (12V) / 2000W (24V) / 3000W (36V) / 4000W (48V)
- Temperature sensor for automatic compensation (-16mV / -32mV / -64mV / °C)
- Comprehensive electronic protection features
- Communication port: RS232 / TTL for VE Direct accessories
- Self-consumption: <35mA (12V) / <20mA (48V)
- Working temperature: -30°C to +60°C
- IEC/EN certified
- Enclosure: IP43 (electronic components) / IP22 (connection area)
- Pollution Degree rating: PD3
- Dimensions: 185 x 250 x 95 mm
- Weight: 3kg
- 4 x mounting holes for ease of installation

*36V battery will not be automatically detected. This will need to be set manually using the Plug-in LCD display or VictronConnect App.

This product is covered by a 5 year warranty. For more information please refer to our Terms and Conditions.
