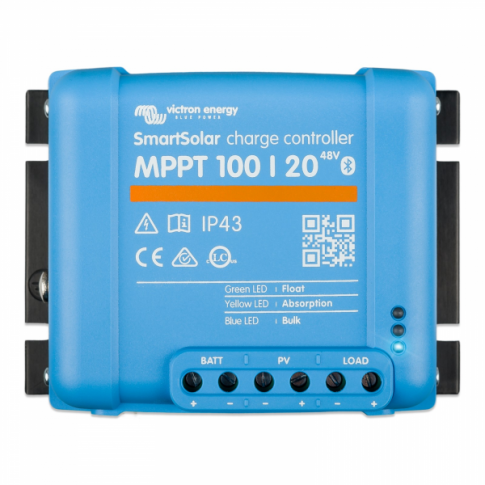

Victron SmartSolar MPPT 100/20 20A solar charge controller for solar panels up to 290W (12V) / 580W (24V) / 1160W (48V) up to 100V (Bluetooth inbuilt)

Specifications:

- The most advanced MPPT technology to ensure high efficiency (> 95%) of your solar system
- Fully automated operation and auto 12 / 24V selection
- 3 pairs of terminals (solar panel, battery, load) for wires up to 6mm2
- Inbuilt bluetooth
- Max solar panel voltage: 100V
- Max solar panel power: 290W (12V) / 580W (24V) / 1160W (48V)
- Temperature sensor for automatic compensation (-16mV °C resp. -32mV °C)
- Comprehensive electronic protection features
- Communication port: RS232 / TTL for VE Direct accessories
- Self-consumption (load on): 12V: 26mA / 24V: 20mA / 48V: 19mA
- Self-consumption (load off): 12V: 10mA / 24V: 8mA / 48V: 7mA
- Load Current : 20A (12V/24V); 1A (48V)
- Working temperature: -30°C to +60°C
- IEC/EN certified
- Enclosure: IP43 (electronic components) / IP22 (connection area)
- Pollution Degree rating: PD3
- Dimensions: 100 x 113 x 60 mm
- Mounting dimensions: 99 x 84 mm
- Weight: 650g
- 4 x mounting holes for ease of installation

This product is covered by a 5 year warranty. For more information please refer to our Terms and Conditions.
