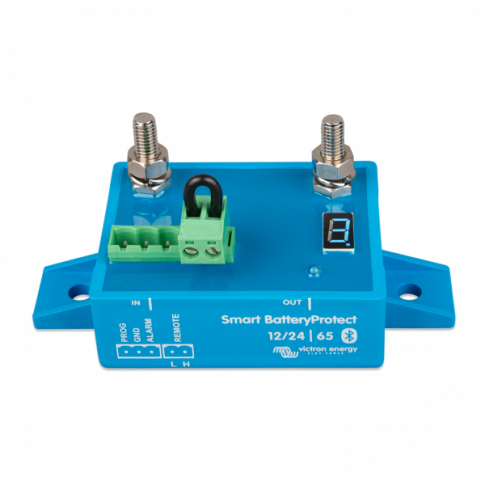

Victron Smart BatteryProtect 65A 12V/24V battery over discharge protector SBP-65 (Bluetooth inbuilt)

System Specifications:

• Nominal battery voltage: 12V / 24V
• Operating voltage range: 6 - 35V
• Maximum continuous current: 65A
• Peak current (30 seconds): 250A
• Current draw: <1.5mA active, <0.6mA during disconnect
• Alarm Relay: 50mA
• Operating temperature range: -40°C to +40°C (up to 60% capacity at 50°C)

Dimensions:

• Dimensions: 40 x 48 x 106 mm
• Weight: 200g

Additional items:

• Negative cable: 50cm length, 1.5mm² cross section
• 2 pin dry-contact socket for remote switch
• 3 pin dry-contact socket for negative cable, alarm and programming input

This product is covered by a 5 year manufacturer warranty. For more information please refer to our Terms and Conditions.

Click on the Installation tab for further instructions.
