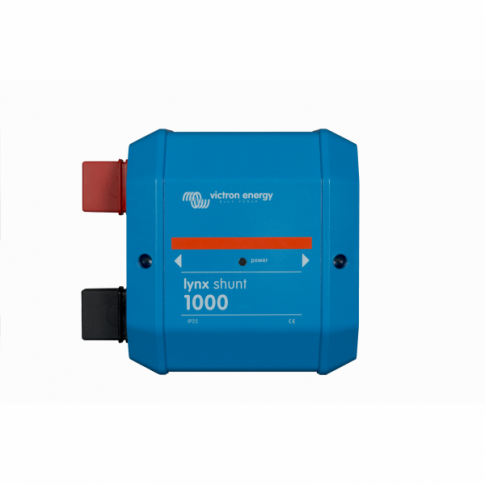

Victron Energy Lynx Shunt VE.Can busbar with main system fuse and battery monitoring 1000A 12V/24V/48V

Technical Specifications:

• Voltage range: 9 - 70Vdc
• Supported system voltages: 12, 24 or 48V
• Current rating: 1000A
• Busbar connection: M8
• Fuse connection: M8
• Reverse polarity protection: No
• Power consumption @ 12V: 60mA
• Power consumption @ 24V: 33mA
• Power consumption @ 48V: 20mA
• Power supply connection to Lynx Distributor: RJ10 (an RJ10 cable is supplied with each Lynx Distributor)
• Enclosure dimensions: 190 x 180 x 80 mm
• Unit weight: 1.4 kg
• Busbar material: Tinned copper
• Operating / storage temperature: -40°C to +60°C
• Humidity: Max. 95% (non-condensing)
• Protection class: IP22

This product is covered by a 5 year manufacturer warranty. For more information please refer to our Terms and Conditions.
