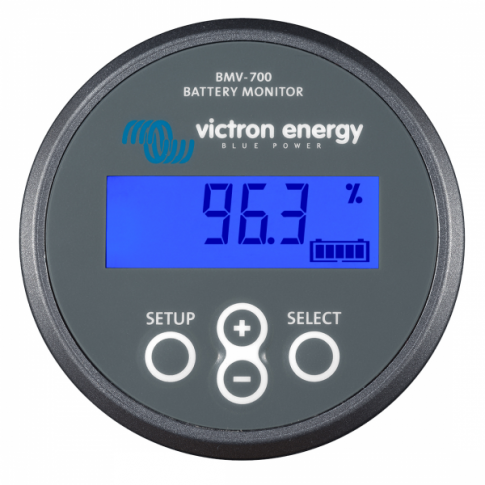

Victron 500A 12V/24V/48V Battery Monitor BMV-700

System Specifications:

• Nominal battery voltage: 12V / 24V / 48V
• Supply voltage range: 6.5 - 95V
• Current draw (backlight off): <4mA
• Relay: 60V / 1A
• Supply current: 15mA (12V) / 8mA (24V)
• Input current range (with supplied shunt): -500A to +500A
• Operating temperature range: -20°C to +50°C

Display format:

• Current: 0.01A
• Voltage: 0.01V
• Amp hours: 0.1Ah
• State of charge (0-100%): 0.1%

Accuracy (with 500A shunt):

• Voltage measurement accuracy: ±0.3%
• Current measurement accuracy: ±0.4%

Dimensions:

• LCD monitor diameter (front): 63mm
• LCD monitor diameter (back): 52mm
• LCD monitor depth: 31mm
• LCD monitor square frame: 69 x 69mm
• LCD monitor weight: 70g
• Shunt dimensions: 120 x 25 x 50 mm
• Shunt weight: 315g

Standards:

• Safety: EN 60335-1
• Emission/ Immunity: EN 55014-1 / EN 55014-2
• Automotive: ECE R10-4 / EN 50498

Additional items:

• Connection cable: 10m length
• Positive supply cable: 1m length
• 4 x mounting screws

This product is covered by a 5 year manufacturer warranty. For more information please refer to our Terms and Conditions.
