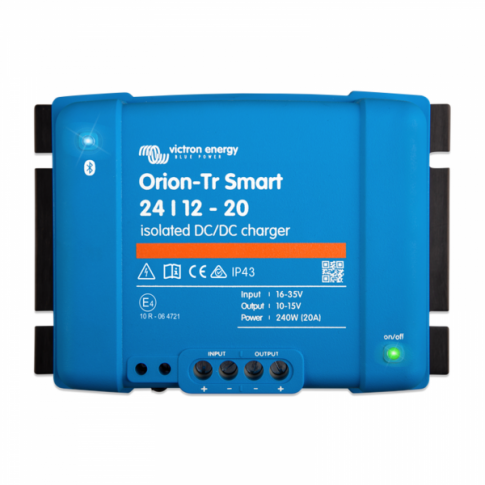

Victron 20A 24V DC to 12V DC automatic multi-stage intelligent battery-to-battery charger for lead acid or lithium batteries with Bluetooth connectivity and galvanic isolation

Specifications:

• Input voltage: 16-35V
• Output current: 0-20A
• Battery types: suitable for any type of 24V / 12V lead acid or lithium battery
• Under voltage shutdown: 14V
• Under voltage restart: 15V
• Output voltage adjustable range: 10-15V (12.2V nominal)
• Output voltage tolerance: +/- 0.2V
• Output noise: 2mV RMS
• Max. power output (25 C): 280W
• Max. power output (40 C): 240W
• No load consumption: < 100mA
• Standby consumption: < 1mA
• Temperature range: -20 to +55 C
• Ambient conditions, humidity: max. 95% RH, no condensation
• Max cable cross section: 16mm² (AWG6)
• Dimensions: 130 x 186 x 70 mm
• Weight: 1.3kg

This product is covered by a 5 year manufacturer warranty. For more information please refer to our Terms and Conditions.
