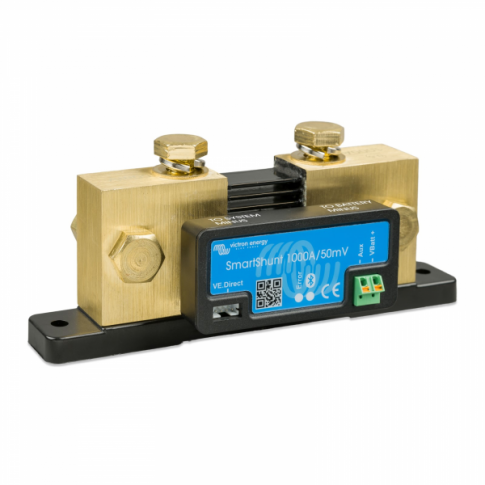

Victron 1000A 12V/24V/48V Battery Monitoring SmartShunt with Inbuilt Bluetooth

System Specifications:

• Nominal battery voltage: 12V / 24V / 48V
• Supply voltage range: 6.5 - 70V
• Input voltage range (Auxiliary battery): 6.5 - 70V
• Supply current: 1mA (12V) / 0.8mA (24V)
• Input current range: -1000A to +1000A
• Operating temperature range: -40°C to +50°C
• Voltage measurement accuracy: ±0.3%
• Current measurement accuracy: ±0.4%
• Simensions: 120 x 68 x 54 mm
• Weight: 1100g

Standards:

• Safety: EN 60335-1
• Emission/ Immunity: EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
• Automotive: EN 50498

Additional items:

• 2x Positive supply cables: 1.5m length
• Optional additional temperature sensor (not included): Victron product code ASS000100000

This product is covered by a 5 year manufacturer warranty. For more information please refer to our Terms and Conditions.

Click on the Installation tab for further instructions.
