Sungrow SP 600S Optimiser
Sungrow SP 600S Optimiser
Couldn't load pickup availability
SKU:ASP00031

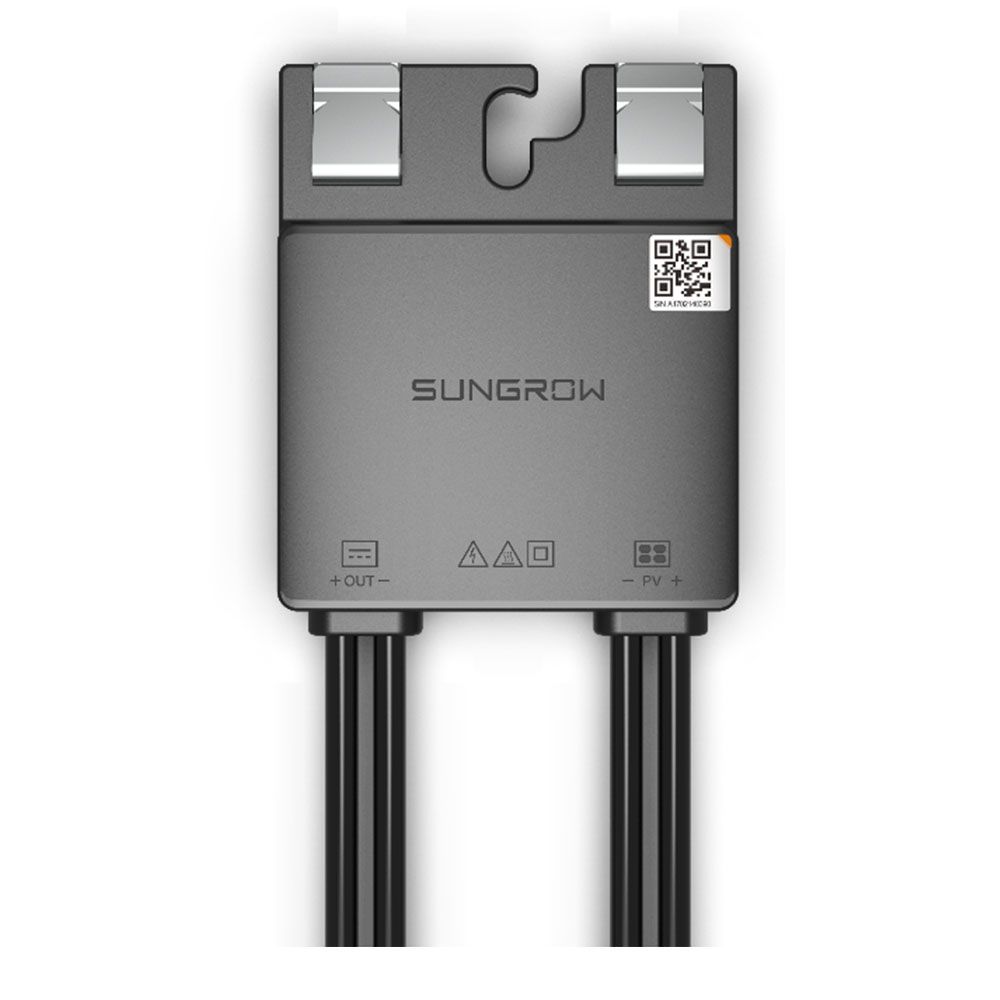

Sungrow SP600S Optimiser – Module-Level Power Optimisation for Residential and Commercial PV Systems
The Sungrow SP600S Optimiser is a cutting-edge module-level power electronics (MLPE) device designed to enhance the performance, safety, and flexibility of solar photovoltaic (PV) systems. By enabling individual module optimisation, the SP600S mitigates the effects of shading, module mismatch, and varying orientations, thereby increasing overall energy yield by up to 30% :contentReference[oaicite:4]{index=4}.:contentReference[oaicite:5]{index=5}
Its compact, lightweight design allows for quick installation, while advanced safety features such as rapid shutdown and arc detection ensure compliance with stringent safety standards. The SP600S is compatible with a range of Sungrow inverters, making it an ideal choice for both new installations and system retrofits.
:contentReference[oaicite:6]{index=6}Technical Specifications
| Electrical Characteristics | |
|---|---|
| Recommended Module Power | 450 W – 695 W |
| Maximum Input Voltage | 80 V |
| MPPT Voltage Range | 8 V – 80 V |
| Maximum Short-Circuit Current (Isc) | 20 A |
| Rated Output Power | 600 W |
| Maximum Output Voltage | 80 V |
| Maximum Output Current | 16 A |
| Safety Output Voltage per Optimiser | 1 V |
| Maximum Efficiency | 99.5% |
| Weighted Efficiency | 99.0% |
| General Information | |
| Dimensions (W x H x D) | 86 mm x 108 mm x 25 mm |
| Weight (including cables) | 0.5 kg |
| Degree of Protection | IP68 |
| Operating Temperature Range | -40°C to +85°C |
| Maximum Operating Altitude | 4,000 m |
| Mounting Method | Push-in or Bolt Installation |
| Communication | Power Line Communication (PLC) |
| Input/Output Connector | MC4 or MC4 Compatible |
| Input Wire Length | 150 mm (PV+), 150 mm (PV-) |
| Output Wire Length | 1,200 mm |
| Compliance Standards | IEC61000-6-2, IEC61000-6-3, IEC62109-1 (Class II Safety) |
| Compatible Inverters | SG2.0/2.5/3.0RS-S, SG3.0/3.6/4.0/5.0/6.0/8.0/9.0/10RS, SH3.0/3.6/4.0/5.0/6.0RS, SG5.0/6.0/7.0/8.0/10/12/15/17/20RT-P2, SG25/30/33/36/40/50/125CX-P2 |
Download the datasheet for Sungrow SP600S Optimiser here: SP600S Datasheet
For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
