Sungrow 5kW Single Phase Hybrid Optimised Inverter - Dual Tracker
Sungrow 5kW Single Phase Hybrid Optimised Inverter - Dual Tracker
Couldn't load pickup availability
SKU:ASH00118

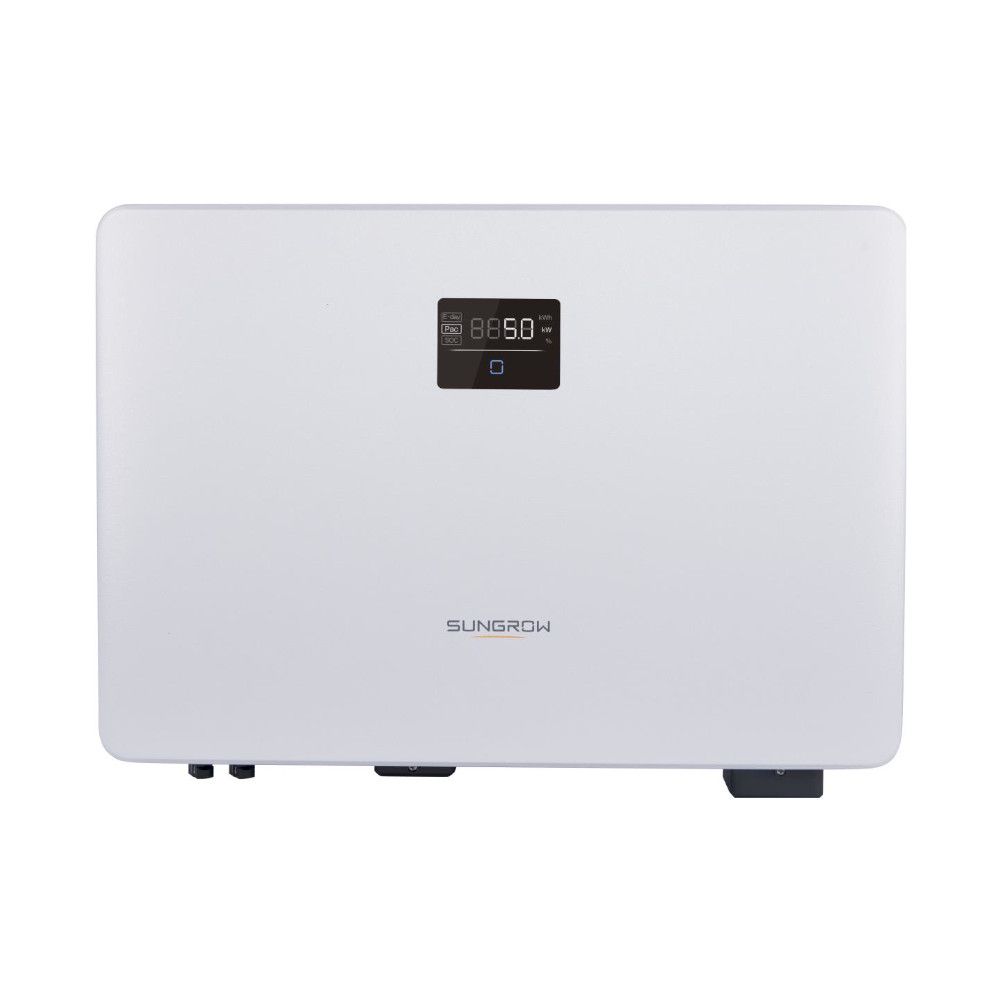

Sungrow 5kW Single Phase Hybrid Optimised Inverter – Dual Tracker (SH5.0RS)
The Sungrow SH5.0RS is a high-performance single-phase hybrid inverter designed for residential solar energy systems. With a rated AC output of 5,000W, it efficiently manages energy conversion and storage, making it ideal for both new installations and retrofitting existing systems. Its dual Maximum Power Point Trackers (MPPTs) allow for optimal energy harvest from solar panels with different orientations.
This inverter supports a wide battery voltage range (80V - 460V) and is compatible with the Sungrow SP 600S optimiser, enhancing system flexibility and performance. Its compact design, natural cooling, and IP65 protection rating ensure durability and ease of installation in various environments. Additionally, the built-in Energy Management System (EMS) with advanced customisation and smart PID recovery function contribute to efficient and reliable operation.
Technical Specifications
| General Information | |
|---|---|
| Brand | Sungrow |
| Model | SH5.0RS |
| Rated AC Output Power | 5,000 W |
| Max DC Power | 7,500 W |
| Inverter Phase | Single |
| Number of MPPT Trackers | 2 |
| Total Number of Strings | 2 |
| MPPT Voltage Range / Rated Input Voltage | 40 – 560 V |
| Start-up Input Voltage | 50 V |
| Max Input Voltage | 600 V |
| Max Input Current per MPPT | 16 A |
| European Efficiency | 97.3% |
| Integrated DC Switch | Yes |
| IP Rating | IP65 |
| Cooling | Natural Convection |
| Dimensions (W x H x D) | 490 x 340 x 170 mm |
| Weight | 18.5 kg |
| Battery Voltage Range | 80 – 460 V |
| Compatible Optimiser | Sungrow SP 600S |
| Communication Interfaces | WLAN, Ethernet, RS485, CAN |
| Smart Functions | Built-in EMS, PID Recovery |
| Grid Connection Standards | G99, G100-2 |
| Warranty Period | 10 Years |
Download the datasheet for Sungrow 5kW Single Phase Hybrid Optimised Inverter here: SH5.0RS Datasheet
For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
