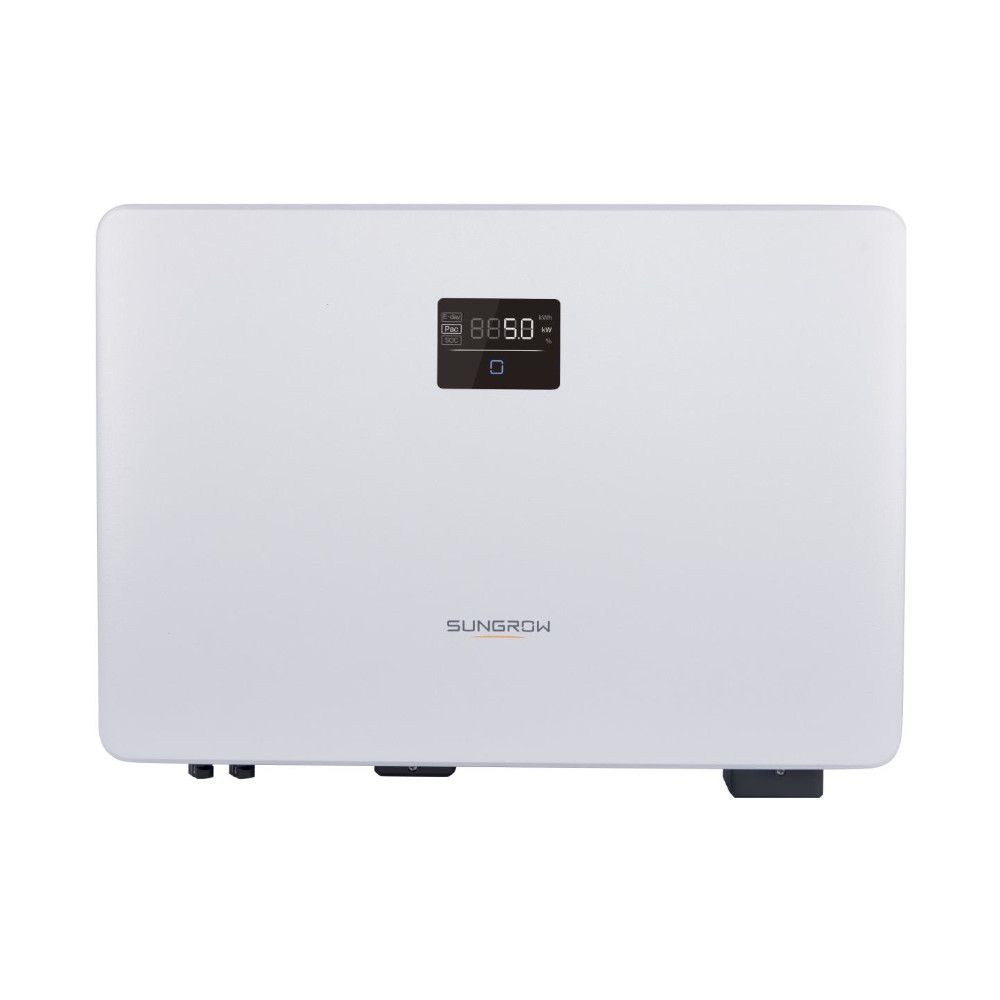

Sungrow 3kW Single Phase Hybrid Optimised Inverter – Dual Tracker (SH3.0RS)
The Sungrow 3kW Single Phase Hybrid Optimised Inverter is a highly efficient solar inverter designed for residential applications. This model is part of the Sungrow SHRS Hybrid Optimised range (3.0kW to 6.0kW), which supports both new solar installations and retrofit systems. With dual MPPTs and wide battery voltage compatibility, it’s a flexible solution for homes looking to maximise solar energy self-consumption and integrate battery storage.
Its compact and lightweight design enhances installation convenience, while natural convection cooling ensures silent, maintenance-free operation. IP65-rated for outdoor durability and featuring a smart PID recovery function, this inverter is built to perform reliably in a range of environments. It also comes equipped with a built-in Energy Management System (EMS) with advanced customisation features, supporting smart grid integration and energy optimisation.
Technical Specifications
| General Information | |
|---|---|
| Brand | Sungrow |
| Model | SH3.0RS |
| Rated AC Power | 3,000 W |
| Max DC Power | 4,500 W |
| Inverter Phase | Single |
| Number of MPPT Trackers | 2 |
| Total Number of Strings | 2 |
| MPPT Voltage Range / Rated Input Voltage | 40 – 560 V |
| Start-up Voltage | 50 V |
| Max Input Voltage | 600 V |
| Max Input Current per MPPT | 16 A |
| European Efficiency | 97.0% |
| Integrated DC Switch | Yes |
| IP Rating | IP65 |
| Cooling | Natural Convection |
| Dimensions (W x H x D) | 490 x 340 x 170 mm |
| Weight | 18.5 kg |
| Battery Voltage Range | 80 – 460 V |
| Compatible Optimiser | Sungrow SP 600S |
| Communication Interfaces | WLAN, Ethernet, RS485, CAN |
| Smart Functions | Built-in EMS, PID Recovery |
| Grid Connection Standards | G98, G99, G100-2 |
| Warranty Period | 10 Years |
Download the datasheet for Sungrow 3kW Single Phase Hybrid Optimised Inverter here: SH3.0RS Datasheet
For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
