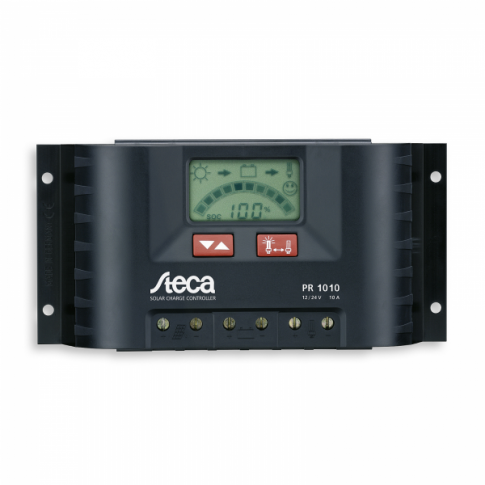

Steca 10A PWM solar controller for caravans, motorhomes, boats and yachts

Controller specifications:

• Nominal battery voltage: 12V / 24V
• Rated charging, load current, diversion current: 10A
• Solar input voltage up to 47V and power up to 160W
• 3 pairs of terminals (input, battery, output)
• Graphical LCD display
• Temperature sensor for automatic compensation (-4mV/K/Cell)
• Minimum voltage to operate: 6.9V
• Self-consumption: 12.5 mA
• Working temperature: -10°C to +50°C
• Enclosure: IP32 (indoor)
• Size: 187 x 96 x 44 mm
• Weight: 350 g
• Mounting holes for ease of installation

The product is covered by 5 year warranty. For more information please refer to our Terms and Conditions.
