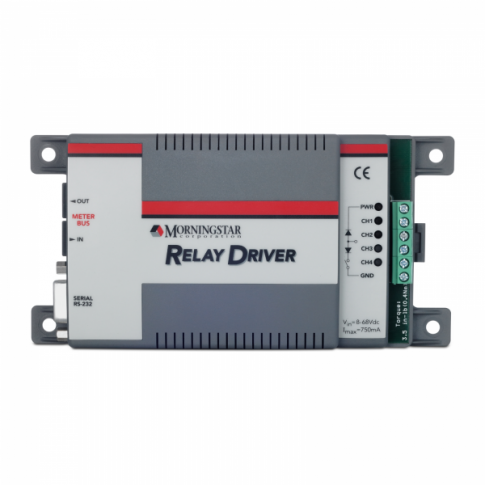

Morningstar Relay Driver RD-1 for multi-channel voltage and parameter control functions

Relay Driver Specifications:

• Number of channels: 4
• Nominal system voltage: 12V / 24V / 36V / 48V
• Operating voltage: 8V - 68V
• Maximum channel current: 750 mA
• Self-consumption: < 20 mA
• Transient surge protection: 1500W / channel
• Temperature sensor range: -40°C - +85°C
• Communication ports (opto-isolated): RJ-11 meter bus connections, 9-pin serial RS-232
• Terminal size: 2.5mm²
• Operating temperature: -40°C to +45°C
• Storage temperature: -55°C - +85°C
• Dimensions: 163 x 81 x 33 mm
• Weight: 0.2kg

This product is covered by a 5 year warranty. For more information please refer to our Terms and Conditions.
