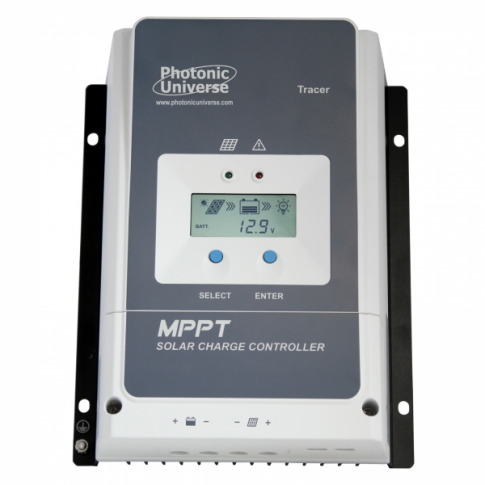

High efficiency 50A MPPT solar charge controller for solar panels up to 625W (12V) / 1250W (24V) / 1875W (36V) / 2500W (48V) up to 150V

Controller specifications:

• The most advanced MPPT technology to ensure high efficiency (>95%) of your solar system
• Fully automated operation and auto 12/24/36/48V selection for lead acid batteries
• 2 pairs of terminals (solar panel, battery) for wires up to 16mm²
• Maximum solar panel voltage 150V
• Maximum solar panel power 625W (12V) / 1250W (24V) / 1875W (36V) / 2500W (48V)
• Temperature sensor for automatic compensation (-3mV/°C/2V)
• Comprehensive electronic protection features
• Communication port: RS485/RJ45 interface
• Grounding: negative common ground
• Current limiting function (50A)
• Self-consumption: 98mA (12V) , 60mA (24V), 50mA (36V), 46mA (48V)
• Working temperature: -25°C to +60°C (temperature derating above 40°C)
• Size: 261 x 216 x 119 mm
• Mounting dimensions: 180 x 204 mm
• Weight: 3.5kg
• Multiple mounting holes (7mm diameter) for ease of installation

The product is covered by a 1 year warranty. For more information please refer to our Terms and Conditions.
