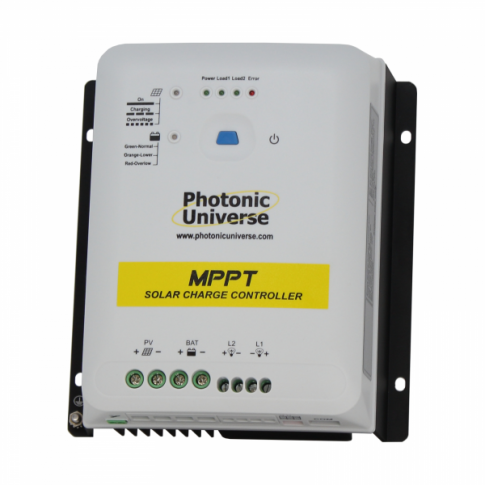

High Efficiency 30A MPPT Solar Charge Controller with Dual Fixed Load Outputs for Solar Panels up to 390W (12V) / 780W (24V) up to 100V

Controller specifications:

• The most advanced MPPT technology to ensure high efficiency (> 95%) of your solar system
• Fully automated operation and auto 12/24V selection
• 4 pairs of terminals (solar panel, battery, load 1, load 2) for wires up to 10mm²
• Maximum solar panel voltage 100V
• Maximum solar panel power 390W (12V) / 780W (24V)
• Temperature sensor for automatic compensation (-3mV/°C/2V)
• Load output power 100W (load 1) / 36W (load 2)
• Load ripple 100mV 200mA
• Comprehensive electronic protection features
• Communication port: RS485/RJ45 interface
• Grounding: negative common ground
• Current limiting function (30A)
• Self-consumption: ≤35mA(12V) / ≤22mA(24V)
• Working temperature: -30°C to +65°C
• Size: 17.8 x 16.2 x 8.01 cm
• Mounting dimension: 12 x 15.3 cm
• Weight:1.5kg
• Multiple mounting holes (5mm diameter) for ease of installation

The product is covered by 1 year manufacturer warranty. For more information please refer to our Terms and Conditions.
