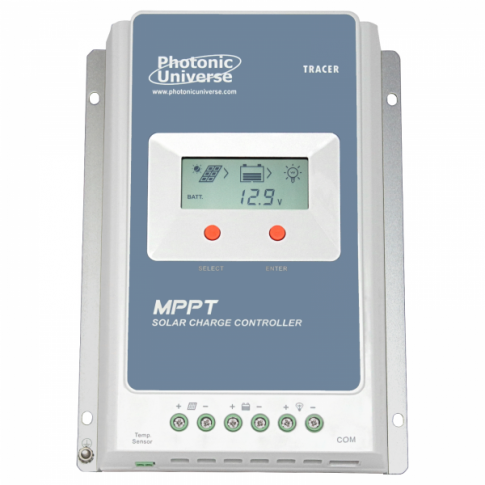

High efficiency 30A MPPT solar charge controller for solar panels up to 390W (12V) / 780W (24V) up to 100V

Controller specifications:

• The most advanced MPPT technology to ensure high efficiency (> 95%) of your solar system
• Fully automated operation and auto 12/24V selection
• 3 pairs of terminals (solar panel, battery, load) for wires up to 16mm²
• Maximum solar panel voltage 100V
• Maximum solar panel power 390W (12V) / 780W (24V)
• Temperature sensor for automatic compensation (-3mV/°C/2V)
• Comprehensive electronic protection features
• Communication port: RS485/RJ45 interface
• Grounding: negative common ground
• Current limiting function (30A)
• Self-consumption: <12mA
• Working temperature: -25°C to +50°C
• Size: 22.8 x 16.4 x 5.5 cm
• Mounting dimension: 17 x 16.4 cm
• Weight:1.26kg
• Multiple mounting holes (5mm diameter) for ease of installation

This product is covered by a 1 year warranty. For more information please refer to our Terms and Conditions.
