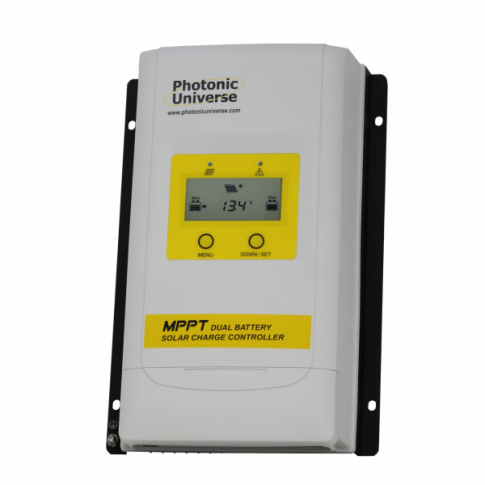

High efficiency 30A dual battery MPPT solar charge controller with LCD display for solar panels up to 390W (12V battery system) / 780W (24V battery system)

Controller specifications:

• The most advanced MPPT technology to ensure high efficiency (>95%) of your solar system
• Fully automated operation and auto 12/24V selection
• 3 pairs of terminals (solar panel, battery 1, battery 2) for wires up to 16mm²
• Maximum solar panel voltage 100V
• Maximum solar panel power 390W (12V) / 780W (24V)
• Temperature sensor for automatic compensation (-3mV/°C/2V)
• Comprehensive electronic protection features
• Communication port: RS485 interface
• Grounding: negative common ground
• Current limiting function (30A)
• Self-consumption: <26mA
• Working temperature: -30°C to +80°C
• Size: 243.7 x 158 x 63 mm
• Mounting dimensions: 180 x 156 mm
• Weight: 1.4 kg
• Multiple mounting holes (5mm diameter) for ease of installation

This product is covered by a 1 year manufacturer warranty. For more information please refer to our Terms and Conditions.
