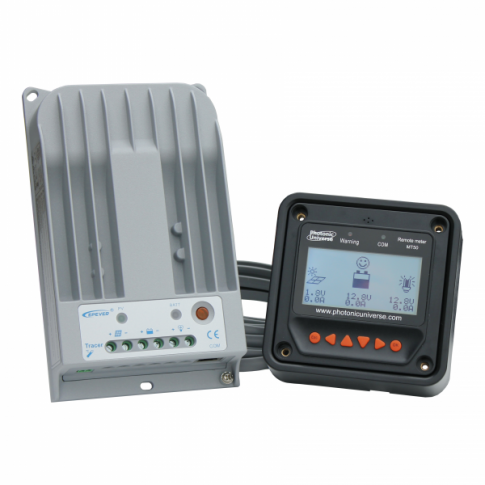

High efficiency 10A MPPT solar charge controller with LCD display and 5m cable for solar panels up to 130W (12V) / 260W (24V) up to 150V

Controller specifications:

• The most advanced MPPT technology to ensure high efficiency of your solar system
• Fully automated operation and auto 12/24V selection
• 3 pairs of terminals (solar panel, battery, load) for wires up to 4mm
• Maximum solar panel voltage 150V
• Maximum solar panel power 130W (12V) / 260W (24V)
• Temperature sensor socket for automatic compensation (-3mV/C/2V)
• Comprehensive electronic protection features
• Communication port: RS485/RJ45 interface
• Grounding: negative common ground
• Current limiting function (10A)
• Self-consumption: <60mA (12V), <30mA (24V)
• Working temperature: -35C to +55C
• Enclosure: IP30
• Size: 19.6 x 11.8 x 3.6 cm
• Weight: 800 g
• Multiple mounting holes for ease of installation

Remote meter specifications:

• Self-consumption: 15-65mA (depending on backlight settings)
• Operating temperature: -20C to +70C
• Communication cable: RJ45 (8pin) 5 meters included
• Wall mounting frame with mounting holes included
• Size (without frame): 10 x 10 x 3 cm
• Size (with frame): 12 x 12 x 5 cm
• Weight: 230 g

The solar charge controller is covered by a 2 year warranty. For more information please refer to our Terms and Conditions.
