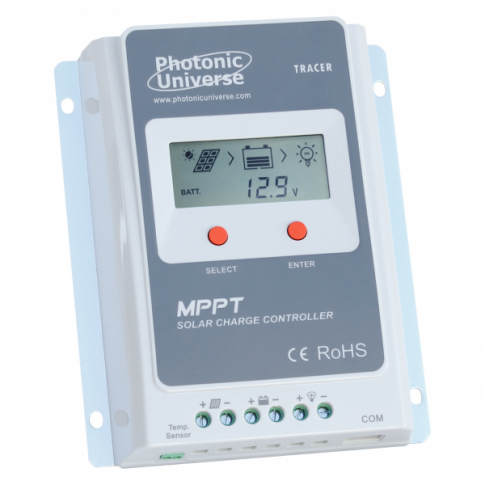

High efficiency 10A MPPT solar charge controller for solar panels up to 130W (12V) / 260W (24V) up to 100V

Controller specifications:

• The most advanced MPPT technology to ensure high efficiency (>95%) of your solar system
• Fully automated operation and auto 12/24V selection
• 3 pairs of terminals (solar panel, battery, load) for wires up to 4mm²
• Maximum solar panel voltage 100V
• Maximum solar panel power 130W (12V) / 260W (24V)
• Temperature sensor for automatic compensation (-3mV/°C/2V)
• Comprehensive electronic protection features
• Communication port: RS485/RJ45 interface
• Grounding: negative common ground
• Current limiting function (10A)
• Self-consumption: <12mA
• Working temperature: -25°C to +50°C
• Size: 17.2 x 13.9 x 4.4 cm
• Mounting dimensions: 13 x 13 cm
• Weight: 0.57 kg
• Multiple mounting holes (5mm diameter) for ease of installation

The product is covered by a 1 year warranty. For more information please refer to our Terms and Conditions.
