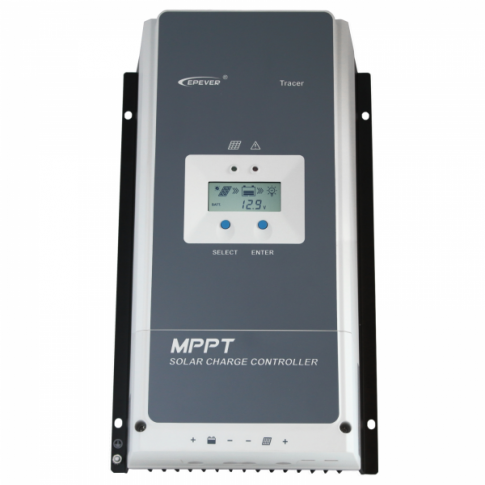

High efficiency 100A MPPT solar charge controller for solar panels up to 1250W (12V) / 2500W (24V)/ 3750W (36V) / 5000W (48V) up to 200V

Controller specifications:

• The most advanced MPPT technology to ensure high efficiency (>95%) of your solar system
• Fully automated operation and auto 12/24/36/48V selection for lead acid batteries
• 2 pairs of terminals (solar panel, battery) for wires up to 35mm²
• Maximum solar panel voltage 200V
• Maximum solar panel power 1250W (12V) / 2500W (24V) / 3750W (36V) / 5000W (48V)
• Temperature sensor for automatic compensation (-3mV/°C/2V)
• Comprehensive electronic protection features
• Communication port: RS485/RJ45 interface
• Grounding: negative common ground
• Current limiting function (100A)
• Self-consumption: 98mA (12V) , 60mA (24V), 50mA (36V), 46mA (48V)
• Working temperature: -25°C to +60°C (temperature derating above 45°C)
• Size: 394 x 242 x 143 mm
• Mounting dimensions: 300 x 230 mm
• Weight: 7.4kg
• Multiple mounting holes (7mm diameter) for ease of installation

The product is covered by a 1 year warranty. For more information please refer to our Terms and Conditions.
