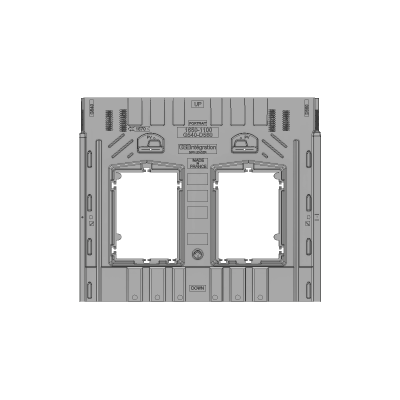

GSE Portrait Half Frame - 1650/1135
The GSE Portrait Half Frame - 1650/1135 facilitates the installation of solar PV modules as part of an integrated In-Roof System. Designed to meet the growing demands of the solar PV industry, GSE introduced the half-frame design in 2022 to accommodate larger, wider, and more powerful solar modules.
This frame allows for seamless module installation on all types of roof coverings, including curved tiles, interlocking tiles, flat tiles, slates, metal, zinc, and trapezoidal surfaces. The system is designed to be mounted on wooden or metal substructures, adapting to different climatic conditions. It supports roof pitches from 12° to 50°, making it a highly versatile solution for residential and commercial applications.
The GSE In-Roof System is engineered for fast and efficient assembly. The plastic trays interlock and are fixed to battens, with roof tiles fitting up to the flashing. Once in place, the panels are hooked onto the trays and clamped securely.
Key Benefits:
Important Installation Information:
Technical Specifications:
For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
The GSE Portrait Half Frame - 1650/1135 facilitates the installation of solar PV modules as part of an integrated In-Roof System. Designed to meet the growing demands of the solar PV industry, GSE introduced the half-frame design in 2022 to accommodate larger, wider, and more powerful solar modules.
This frame allows for seamless module installation on all types of roof coverings, including curved tiles, interlocking tiles, flat tiles, slates, metal, zinc, and trapezoidal surfaces. The system is designed to be mounted on wooden or metal substructures, adapting to different climatic conditions. It supports roof pitches from 12° to 50°, making it a highly versatile solution for residential and commercial applications.
The GSE In-Roof System is engineered for fast and efficient assembly. The plastic trays interlock and are fixed to battens, with roof tiles fitting up to the flashing. Once in place, the panels are hooked onto the trays and clamped securely.
Key Benefits:
- Simple and quick installation with a modular fixing system.
- Compatible with a wide range of standard PV panels.
- Lightweight construction at only 2-3kg/m² for easy handling.
- 100% recyclable materials for an eco-friendly solar solution.
- Designed to work with both portrait and landscape module configurations.
- Resistant to extreme temperatures ranging from -30°C to 100°C.
- Fully waterproof and tested under severe climatic conditions.
- Backed by a 10-year warranty, supported by SMABTP.
Important Installation Information:
- 2 frames are required per module.
- Compatible with module sizes:
- Orientation: Portrait
- Module Height: 1610mm - 1800mm
- Module Width: 1130mm - 1135mm
Technical Specifications:
| Feature | Specification |
|---|---|
| Product Type | Portrait Half Frame |
| Manufacturer | GSE (Groupe Solution Energie SAS) |
| Mounting Type | In-Roof PV Mounting System |
| Compatible Module Heights | 1610mm - 1800mm |
| Compatible Module Widths | 1130mm - 1135mm |
| Roof Compatibility | Curved, Interlocking, Flat, Slate, Metal, Zinc, Trapezoidal |
| Roof Pitch Compatibility | 12° - 50° |
| Material | Polypropylene Frames & Steel/Aluminium Fixings |
| Climate Resistance | -30°C to 100°C |
| Waterproofing | 100% Watertight |
| Warranty | 10 Years (Backed by SMABTP) |
| Recyclability | 100% Recyclable |
For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
