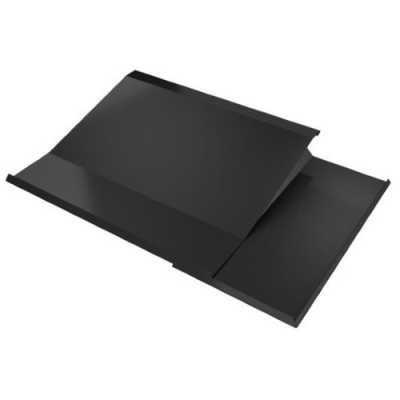

GSE Corner Flashing - Top Right - Black

GSE Corner Flashing - Top Right - Black

The GSE Corner Flashing - Top Right (Black) is a key component in the GSE In-Roof PV mounting system, designed to ensure a seamless, professional, and weatherproof finish for integrated solar panel installations. This corner flashing fits securely on the top right side of the system, providing essential protection and stability while maintaining a sleek aesthetic.

Manufactured by GSE (Groupe Solution Energie SAS), this flashing is specifically designed for use with aluminium-framed solar photovoltaic panels. The GSE In-Roof System offers a fully integrated solar mounting solution, replacing traditional above-roof solar installations with an efficient and visually appealing alternative. It supports both portrait and landscape module configurations on a wide range of roof types, including curved, interlocking, flat, and slate roofs.

The system’s modular design allows for roof pitches between 12°-50° and is compatible with both wooden and metal roof structures. Thanks to its highly adaptable framework, nearly all photovoltaic panels on the market can be installed using this system, giving installers greater flexibility when designing solar arrays.

Why Choose the GSE In-Roof System?

• Seamless integration eliminates the need for visible mounting frames, preserving roof aesthetics.
• Flexible installation supports virtually all PV panel sizes and thicknesses.
• Quick and easy assembly with a modular fixing system enables installation of 3-5kW systems in as little as 6 hours.
• Lightweight and durable, designed for easy transport and long-term structural integrity.
• Extreme climate resistance, engineered to perform in temperatures ranging from -30°C to 100°C.
• 100% waterproof, tested to withstand severe weather conditions, ensuring full watertight protection.
• Sustainable and recyclable, with polypropylene frames and steel/aluminium fixings that are 100% recyclable.

Technical Specifications:

Feature	Specification
Manufacturer	GSE (Groupe Solution Energie SAS)
Mounting Type	In-Roof PV Mounting System
Mounting Part	Landscape Flashings
Commodity Code	78060080
Dimensions (mm) (H x W x D)	503 x 330 x 1
Installation Orientation	Portrait & Landscape
Compatible Roof Types	Curved, Interlocking, Flat, Slate
Roof Pitch Compatibility	12° - 50°
Climate Resistance	-30°C to 100°C
Waterproofing	100% Watertight
Material	Polypropylene Frames & Steel/Aluminium Fixings
Recyclability	100% Recyclable

For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
