Growatt 8kW Single Phase, LV Hybrid Inverter
Growatt 8kW Single Phase, LV Hybrid Inverter
Couldn't load pickup availability
SKU:SPM 8000TL-HU

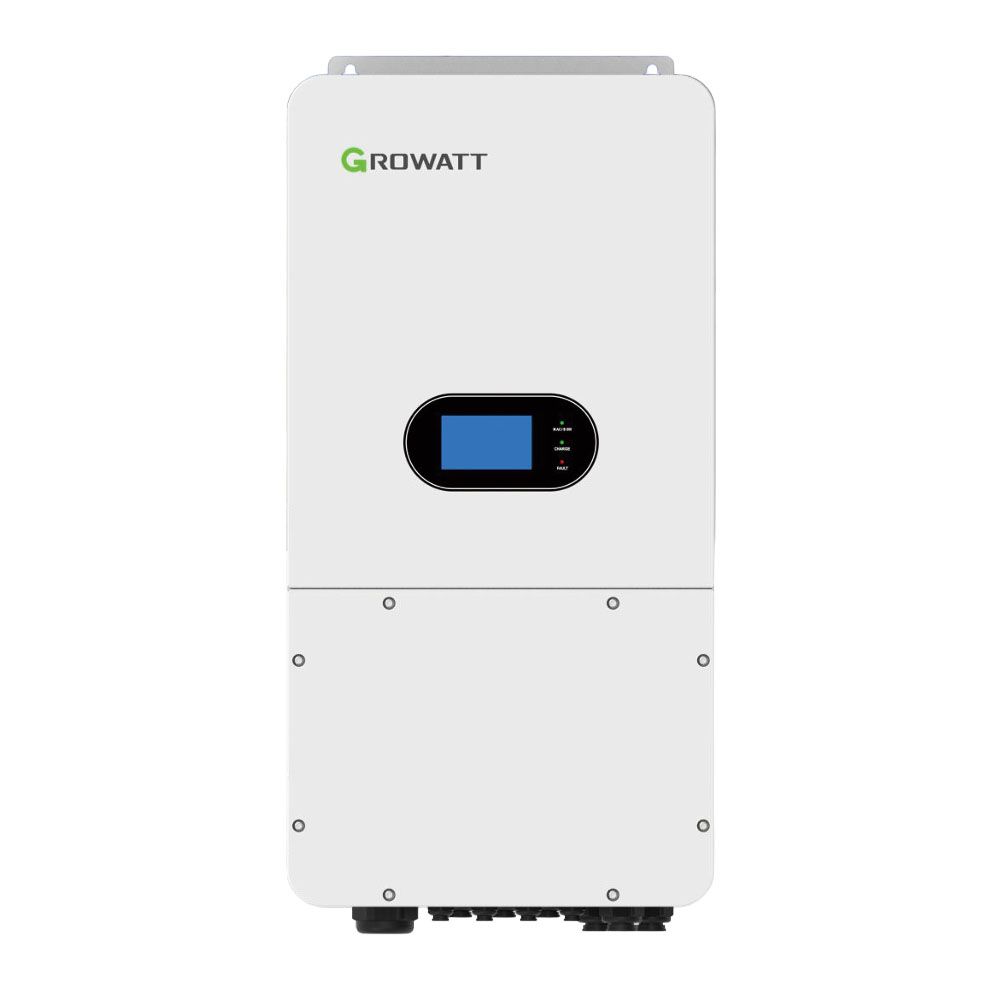

Growatt 8kW Single Phase LV Hybrid Inverter – SPM 8000TL-HU
The Growatt SPM 8000TL-HU is a high-performance single-phase hybrid inverter designed for residential solar energy systems. Ideal for both new installations and retrofit applications, this inverter seamlessly integrates with low-voltage (40–60V) lithium or lead-acid batteries, providing a reliable uninterruptible power supply (UPS) with a swift 10ms transition time.
With its compact design, robust IP65-rated enclosure, and smart cooling system, the SPM 8000TL-HU ensures durability and efficient operation in various environmental conditions. Its advanced features, including three Maximum Power Point Tracking (MPPT) inputs and support for up to six units in parallel, make it a versatile solution for optimising solar energy harvest and ensuring energy independence.
Whether you're aiming to reduce energy bills, enhance energy security, or contribute to a sustainable future, the Growatt 8kW Single Phase LV Hybrid Inverter offers a dependable and intelligent choice for your solar energy needs.
Technical Specifications
| Input (DC) | |
|---|---|
| Max. Recommended PV Power | 16,000 W |
| Max. DC Voltage | 600 V |
| Start-up Voltage | 120 V |
| MPP Voltage Range | 150–500 V / 370 V |
| Number of MPPT Trackers | 3 |
| Max. Input Current per MPPT | 16 A |
| Output (AC) | |
| Nominal AC Power | 8,000 W |
| Max. AC Apparent Power | 8,000 VA |
| Nominal AC Voltage (Range) | 230 V (180–280 V) |
| AC Grid Frequency (Range) | 50 Hz (45–55 Hz) |
| Max. Output Current | 40 A |
| Adjustable Power Factor | 0.8 leading to 0.8 lagging |
| THD (Total Harmonic Distortion) | <3% |
| Battery | |
| Battery Voltage Range | 40–60 V |
| Max. Charging/Discharging Current | 165 A |
| Continuous Charging/Discharging Power | 8,000 W |
| Supported Battery Types | Lithium-ion, Lead-acid |
| General | |
| Efficiency (Peak / European) | 97.5% / 96.5% |
| MPPT Efficiency | ≥99.5% |
| IP Rating | IP65 |
| Cooling | Smart Cooling |
| Operating Temperature Range | -25°C to +60°C |
| Dimensions (W x H x D) | 440 x 883 x 256 mm |
| Weight | 48.84 kg |
| Display | LCD Touch Screen |
| Communication Interfaces | RS485, CAN, USB, WiFi/LAN |
| Warranty | 10 Years |
Download the datasheet for Growatt 8kW Single Phase LV Hybrid Inverter here: SPM 8000-10000TL-HU Datasheet
For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
