Growatt 10kW Single Phase, LV Hybrid Inverter
Growatt 10kW Single Phase, LV Hybrid Inverter
Couldn't load pickup availability
SKU:SPM 10000TL-HU

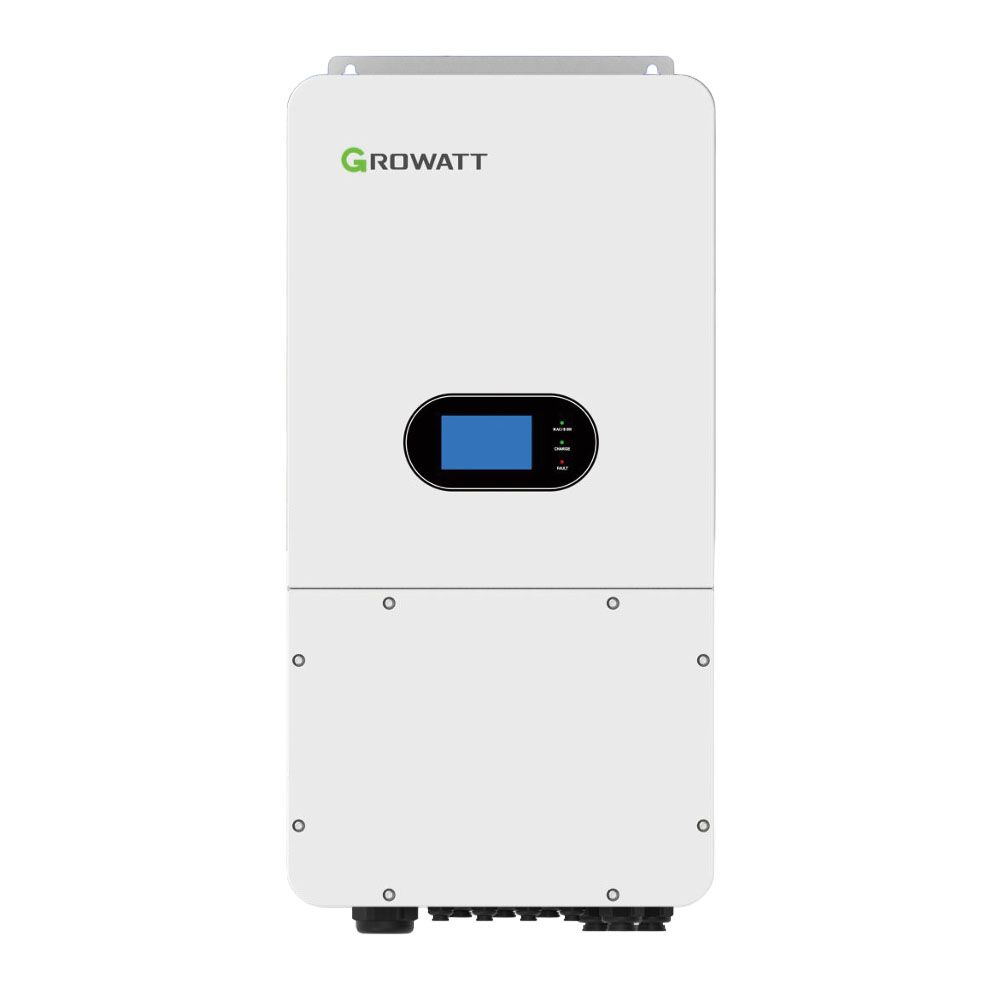

Growatt 10kW Single Phase LV Hybrid Inverter – SPM 10000TL-HU
The Growatt 10kW Single Phase LV Hybrid Inverter (model SPM 10000TL-HU) is a powerful and intelligent energy solution designed for residential solar panel systems. This single-phase hybrid inverter supports low voltage batteries (40–60V), providing a seamless uninterruptible power supply (UPS) with a rapid 10ms transition, ensuring consistent energy flow even during grid outages.
Engineered for both new solar installations and retrofit applications, this inverter is ideal for homeowners seeking to maximise solar energy self-consumption, reduce electricity bills, and increase energy independence. With three MPPT trackers, high conversion efficiency, and support for up to six units in parallel, it’s the perfect fit for scalable and high-performing solar power systems.
The inverter boasts a compact, IP65-rated design for outdoor durability, along with smart cooling technology and a user-friendly LCD touch display. It supports both lithium and lead-acid batteries, delivering flexibility for a wide range of system configurations.
Technical Specifications
| Product Overview | |
|---|---|
| Brand | Growatt |
| Model | SPM 10000TL-HU |
| Rated Power | 10,000 W |
| Max DC Power | 20,000 W |
| Phase | Single |
| Number of MPPTs | 3 |
| Total Number of Strings | 6 |
| MPPT Voltage Range / Rated Input Voltage | 150–500 V |
| Start-up Input Voltage | 120 V |
| Max Input Voltage | 600 V |
| Max Input Current per MPPT | 16A + 16A + 32A |
| European Efficiency | 96.5% |
| UPS Function | 10 ms transition |
| Surge Protection | Type II for DC and AC |
| DC/AC Ratio | Up to 2.0 |
| Parallel Support | Up to 6 units |
| Battery Compatibility | Lithium-ion, Lead-acid |
| Display | LCD Touch Screen |
| IP Rating | IP65 |
| Cooling | Smart Cooling |
| Dimensions (W x H x D) | 440 x 883 x 256 mm |
| Weight | 48.84 kg |
| Grid Connection Standards | G100-2, G99 |
| Integrated DC Switch | Yes |
| Warranty | 10 Years |
Download the datasheet for Growatt 10kW Single Phase LV Hybrid Inverter here: SPM 8000-10000TL-HU Datasheet
