Fogstar Energy 48V 35A Charger
Fogstar Energy 48V 35A Charger
Couldn't load pickup availability
SKU:FSE-CHG-48V35A

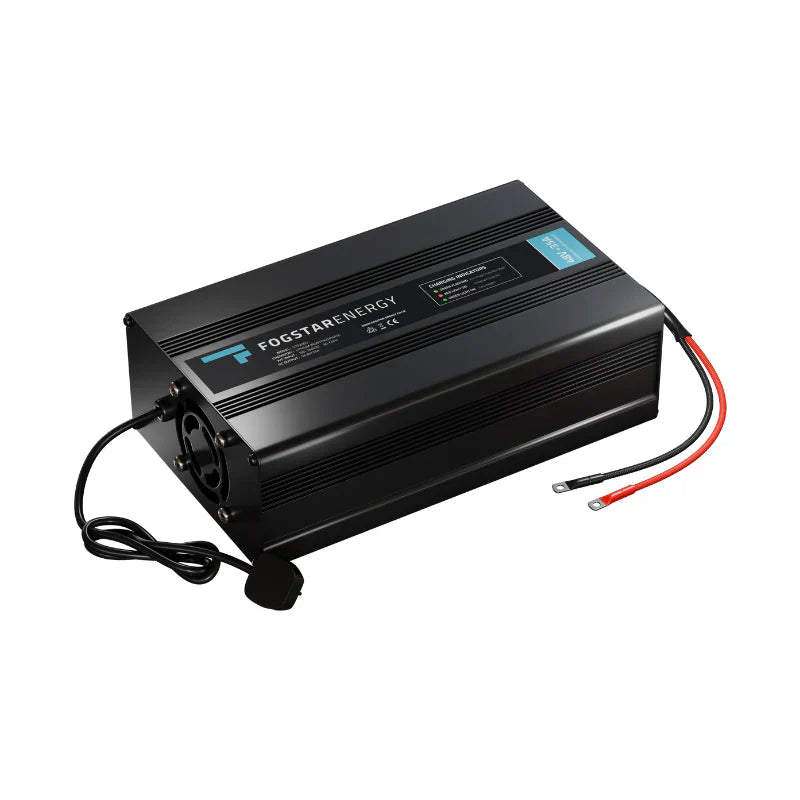

Fogstar Energy 48V 35A LiFePO4 Battery Charger – High-Efficiency Lithium Charger for Off-Grid Power Systems
The Fogstar Energy 48V 35A LiFePO4 Battery Charger is expertly engineered for use with 48V lithium iron phosphate (LiFePO4) battery systems. Whether you’re powering an off-grid solar setup, campervan, or backup power solution, this charger ensures optimal charging performance with maximum safety and reliability.
With a robust 35A output, this charger is designed to rapidly recharge your batteries, reducing downtime and extending battery lifespan through advanced charging algorithms. Built-in safety features such as over-voltage, over-current, short-circuit, and reverse polarity protection provide peace of mind for every user.
Key Features:
- Optimised for 48V LiFePO4 Batteries – Perfect for use with solar, RV, marine, and backup systems.
- High Current Output – 35 Amps – Fast and efficient charging for large-capacity battery banks.
- Advanced Protection Circuitry – Over-voltage, over-current, short-circuit, and reverse polarity protection.
- User-Friendly Operation – Clear LED indicators and plug-and-play setup.
- Rugged Design – Fan-cooled with a wide operating temperature range for various environments.
Technical Specifications:
| Specification | Details |
|---|---|
| Working Temperature | -30°C to +40°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | 5% to 95% |
| Heat Dissipation | Active Fan Cooling |
| Input Voltage | 180–260 VAC |
| Input Frequency | 50Hz / 60Hz |
| Chemistry Supported | LiFePO4 |
| DC Output | 48V / 35A |
| Ring Connector Size | M10 (fits M6 with washer) |
How to Connect Your Charger:
- Remove charger from packaging (retain packaging for future use).
- Ensure the charger air vents are unobstructed.
- Connect the black (negative -) cable to the black terminal on your battery.
- Connect the red (positive +) cable to the red terminal.
- Ensure terminal rings are securely fastened.
- Plug into mains and switch ON – the indicator should flash green during pre-charge inspection.
Health and Safety Warnings:
- Do not disassemble or modify the charger.
- Do not leave the charger unattended while in use.
- Keep away from water, heat sources, and blockages of air vents.
- Only operate within the manufacturer’s specifications.
Download the datasheet for Fogstar Energy 48V 35A LiFePO4 Battery Charger here.
For additional information, reach out to us at hello@offgridrenewables.co.uk.
