DAS Solar NE 445W N-Type Bifacial, Double Glass, Full Black
DAS Solar NE 445W N-Type Bifacial, Double Glass, Full Black
Couldn't load pickup availability
SKU:DAS-DH96NE-445W-FB
DAS Solar NE 445W N-Type Bifacial, Double Glass, Full Black

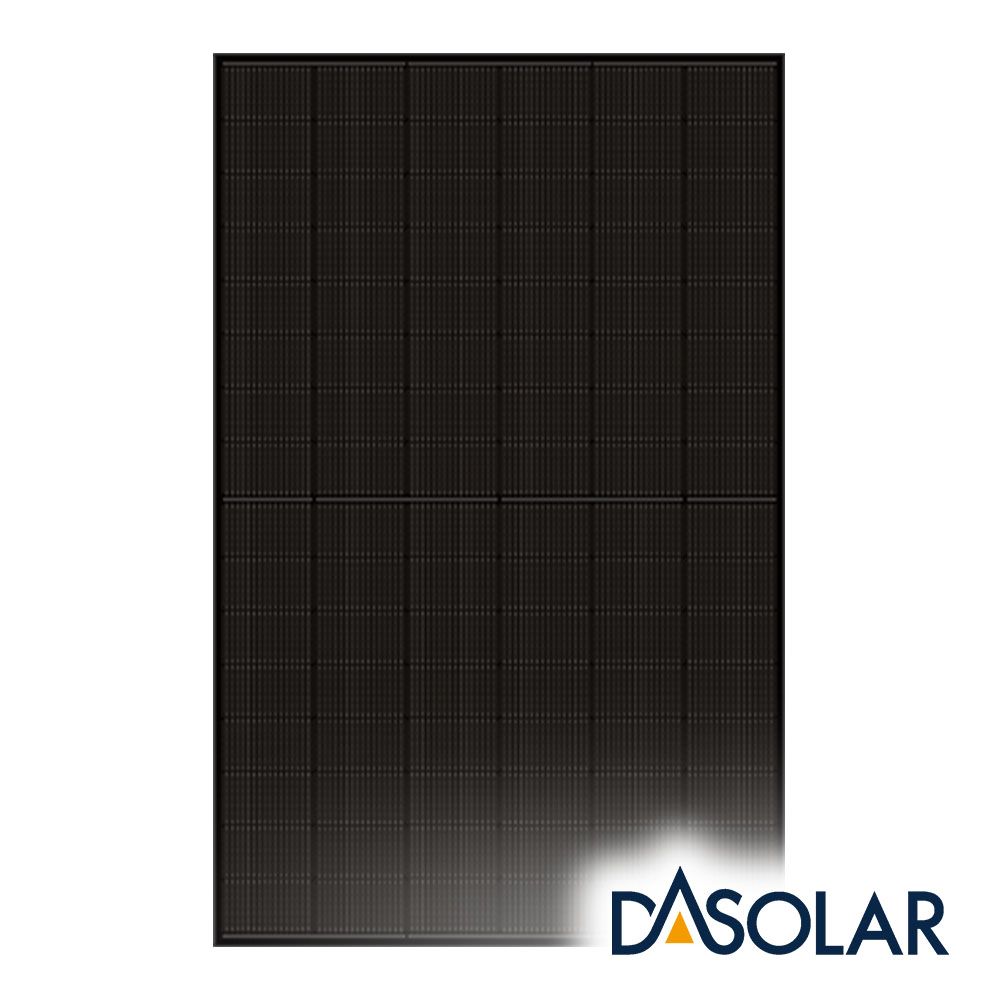

The DAS-DH96NE-445W-FB is a high-efficiency, full-black solar module engineered to maximise energy production. Incorporating advanced N-Type TOPCon bifacial technology, this panel captures sunlight from both its front and rear surfaces, significantly enhancing overall energy yield. Its robust double-glass construction and sleek full-black design make it an ideal choice for residential and commercial installations seeking both performance and aesthetics.
Key Features:
- High Efficiency: Achieves up to 22.3% module efficiency, ensuring optimal energy conversion.
- Bifacial Technology: Rear-side power gain of up to 30%, increasing total energy yield.
- Durable Design: Double-glass structure with IP68-rated junction box for enhanced protection against environmental factors.
- Low Light Performance: Maintains high power output even under low irradiance conditions, such as cloudy or foggy days.
- Extended Warranty: 25-year product warranty and 30-year performance warranty, guaranteeing long-term reliability.
Technical Specifications:
| Specification | Details |
|---|---|
| Model | DAS-DH96NE-445W-FB |
| Rated Power Output | 445 W |
| Module Efficiency | 22.3% |
| Cell Type | N-Type TOPCon |
| Number of Cells | 96 Half Cells |
| Dimensions | 1800 × 1134 × 30 mm |
| Weight | 21.6 kg |
| Glass Thickness | 1.6 mm (front and rear) |
| Frame | Black anodised aluminium alloy |
| Maximum System Voltage | 1500 V DC |
| Operating Temperature | -40°C to +85°C |
| Connector Type | MC4-EVO2 Original |
| Junction Box | IP68, 3 bypass diodes |
| Power Tolerance | 0 ~ +5 W |
| Mechanical Load | 5400 Pa (front), 2400 Pa (rear) |
| Annual Degradation | 0.40% |
| Panels per Pallet | 36 |
| Panels per Container | 936 |
Download the datasheet for DAS Solar NE 445W N-Type Bifacial, Double Glass, Full Black here: DAS-DH108NA-EN-420-445 (Black Pro) Datasheet
For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
