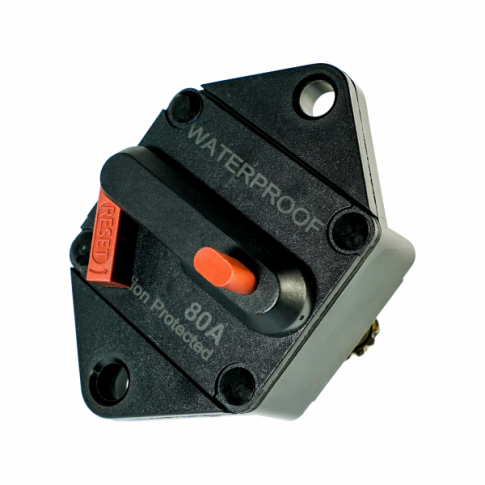

80A 12V/24V/48V Automatic over-current DC circuit breaker / switch for panel or recess mount

Circuit breaker specifications:

• Rating: 80A
• Type: Thermal overcurrent protection device
• Material: Thermal plastic (UL rated 94V-0)
• Operating temperature: -32C to 82C
• Storage temperature: -34C to 149C
• Terminals size: M6
• Enclosure: IP67
• Size: 74 x 48 x 37 mm
• Weight: 110g
• Waterproof rating: IP67
• International standard ratings (S.A.E. J1625, J1171, UL1500)
