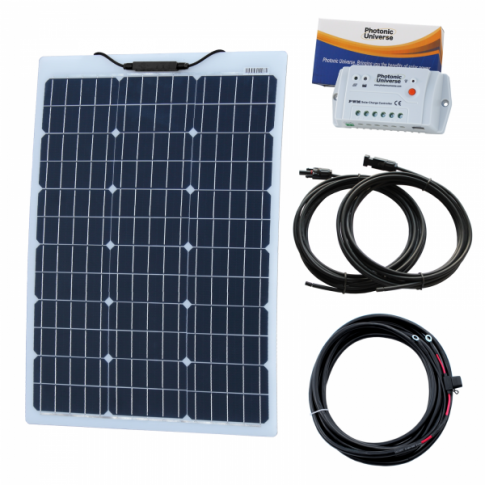

60W 12V Reinforced Semi-flexible solar charging kit

 Solar panel specifications:

• Peak power: 60W
• Maximum power voltage: 20.2V
• Maximum power current: 2.97A
• Open circuit voltage: 23.9V
• Short circuit current: 3.15A
• Power allowance range: +/- 5%
• Solar Panel Dimensions: 720 x 505 x 4 mm
• Junction Box Dimensions: 90 x 16 x 16 mm
• Weight: 2.35 kg
• 2 x 0.9m of high quality single core solar cable (2.5mm² cross section)
• Male and female MC4 connectors

Charge controller specifications:

• Rated current 10A
• Fully automated operation and auto 12/24V selection
• Wide solar input voltage range up to 50V
• 3 pairs of terminals (input, battery, output)
• LEDs to indicate charging, battery and load
• Temperature sensor for automatic compensation (-3mV/°C/2V)
• Over load protection (≥1.05 times the rated discharge current)
• Short circuit protection (≥2 times the rated discharge current)
• Over charge / discharge, overheating and other protection features
• Self-consumption: ≤ 8.4mA (12V) / ≤ 7.8mA (24V)
• Working temperature: -35°C to +50°C
• Terminals for wire up to 4mm²
• Size: 13.8 x 6.9 x 3.7 cm
• Weight: 130 g
• Multiple mounting holes for ease of installation

Please note: due to our warehouse arrangements, the solar charge controller and accessories may be shipped from a different warehouse to the solar panel and therefore delivered in a separate package.

This product is covered by a 1 year workmanship warranty. We will repair or replace defective items at our discretion. For more information please refer to our Terms and Conditions.
