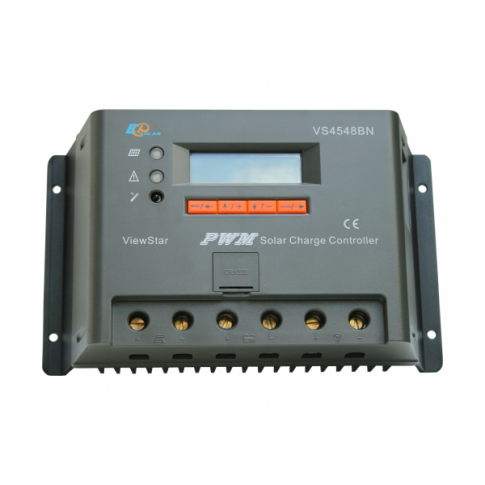

45A solar charge controller/regulator with LCD display for 12V/24V/36V/48V battery

Controller specifications:

• Rated current 45A
• Fully automated operation and auto 12/24/36/48V selection
• Enhanced monitoring and charging / load work control
• Maximum solar panel input voltage 96V
• 3 pairs of terminals (input, battery, output)
• Temperature sensor for automatic compensation (-30mV/C/12V)
• Full set of electronic protection features (reverse current, over charge, discharge, over load, reverse polarity, short circuit etc.)
• Self-consumption: max. 15mA (12V); 10mA (24V); 9mA (36V); 8mA (48V)
• Working temperature: -25C to +55C
• Terminals for wire up to 35mm2
• Size: 20.5 x 12 x 7 cm
• Weight: 1.2 kg
• Multiple mounting holes for ease of installation

This product is covered by a 2 year manufacturer warranty. For more information please refer to our Terms and Conditions.
