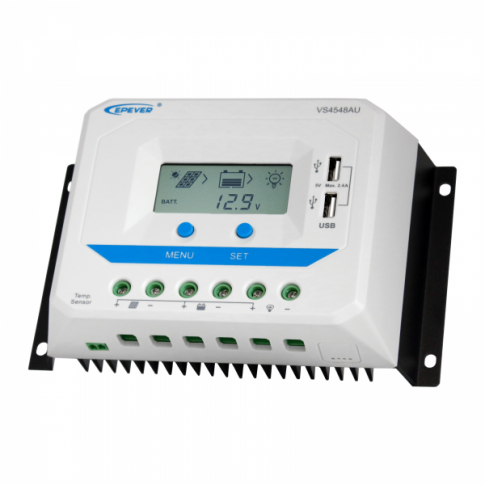

45A 12/24/36/48V solar charge controller / regulator with LCD display and powerful dual USB output (2.4A)

Controller specifications:

• Fully automated operation and auto 12/24/36/48V selection
• Rated charge/discharge current: 45A
• Maximum solar panel input power: 640W (12V) / 1280W (24V) / 1920W (36V) / 2560W (48V)
• Maximum solar panel input voltage: 96V
• Temperature sensor for automatic compensation: -3mV/ºC/2V (25ºC)
• Working temperature: -25ºC to +55ºC
• Self-consumption: max. ≤9.2mA (12V); ≤11.7mA (24V); ≤14.5mA (36V); ≤17mA (48V)
• 3 pairs of terminals (solar, battery, optional load)
• Terminals for wire up to 16mm²
• Multiple mounting holes for ease of installation
• Size: 19.4 x 11.8 x 6.4 cm
• Weight: 880 g

This product is covered by a 1 year manufacturer warranty. For more information please refer to our Terms and Conditions.
