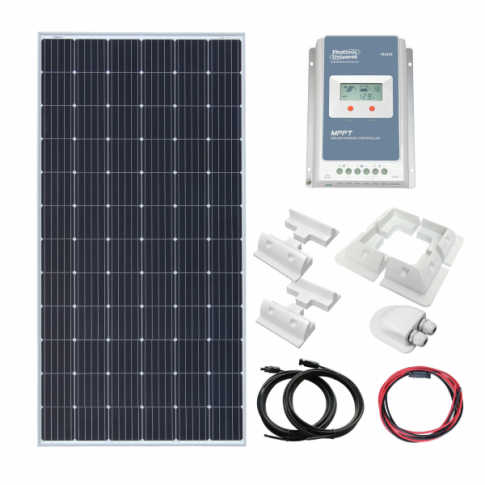

360W 12V/24V Complete solar charging kit with 30A MPPT controller

Solar panel specifications:

• Peak power: 360W
• Maximum power voltage: 38.90V
• Maximum power current: 9.25A
• Open circuit voltage: 47.9V
• Short circuit current: 9.75A
• Power tolerance: 0/+3%
• Dimensions: 1956 x 990 x 40 mm
• Weight: 23 kg
• Mounting holes for installation
• 2 x 0.9m of high quality single core solar cable 4.0mm² cross section
• Male and female MC4 connectors

Charge controller specifications:

• The most advanced MPPT technology to ensure high efficiency of your solar system
• Fully automated operation and auto 12V/24V charging voltage selection
• 3 pairs of terminals (solar panel, battery, load) for wires up to 16mm2
• Maximum solar panel voltage 100V
• Maximum solar panel power 390 (12V) / 780W (24V)
• Comprehensive electronic protection
• Self-consumption: less than 12mA
• Working temperature: -25C to +50C
• Size: 22.8 x 16.4 x 5.5 cm
• Weight: 1.26 kg
• Multiple mounting holes for ease of installation

Mounting accessory specifications:

• Material: plastic
• Colour: white
• Cable diameter for the cable gland: 3-7mm
• Size: each corner bracket 15 x15 x 6.5 cm, each side bracket 18 x 9 x 6.5 cm, cable gland 11 x 9 x 4 cm
• Combined weight: 2.7kg

Please note: due to our warehouse arrangements, the solar charge controller and accessories may be shipped from a different warehouse to the solar panel and therefore delivered in a separate package.

The product is covered by a 1 year warranty. For more information please refer to our Terms and Conditions.

In addition, solar cells are guaranteed to produce at least 90% of nominal power in 10 years after purchase and at least 80% of nominal power in 25 years after purchase. This warranty is provided by the manufacturer of solar cells.
