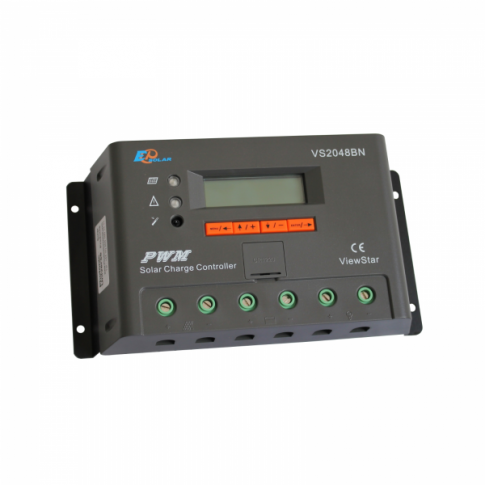

20A solar charge controller/regulator with LCD display for 12V/24V/36V/48V battery

Controller specifications:

• Fully automated operation and auto 12/24/36V/48V selection
• Rated charging and load current: 20A
• Enhanced monitoring and charging / load work control
• Maximum solar panel input voltage 96V
• 3 pairs of terminals (input, battery, output)
• Temperature sensor for automatic compensation (-30mV/C/12V)
• Comprehensive electronic protection features
• Self-consumption: max 15mA (12V); 10mA (24V); 9mA (36V); 8mA (48V);
• Working temperature: -25C to +55C
• Terminals for wire up to 16mm2
• Size: 20 x 10.5 x 6 cm
• Weight: 0.7 kg
• Multiple mounting holes for ease of installation

This product is covered by a 2 year manufacturer warranty. For more information please refer to our Terms and Conditions.
