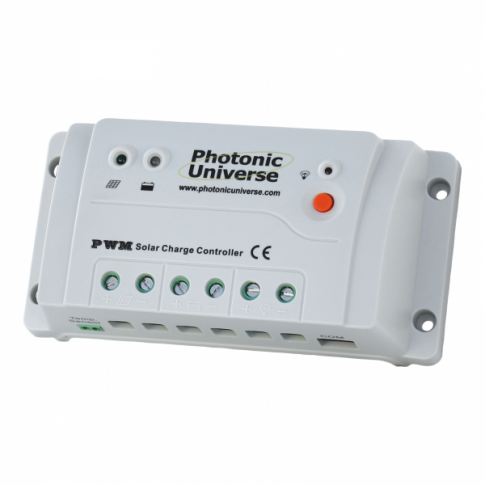

20A solar charge controller / regulator 12/24V for camper / caravan / boat

Specifications:

• Rated current 20A
• Fully automated operation and auto 12/24V selection
• Wide solar input voltage range up to 50V
• 3 pairs of terminals (input, battery, output)
• LEDs to indicate charging, battery and load
• Temperature sensor for automatic compensation (-3mV/°C/2V)
• Over load protection (≥1.05 times the rated discharge current)
• Short circuit protection (≥2 times the rated discharge current)
• Over charge / discharge, overheating and other protection features
• Self-consumption: ≤ 8.4mA (12V) / ≤ 7.8mA (24V)
• Working temperature: -35C to +50C
• Terminals for wire up to 10mm2
• Size: 15.9 x 8.1 x 4.8 cm
• Weight: 300 g
• Multiple mounting holes for ease of installation

This product is covered by a 1 year warranty. For more information please refer to our Terms and Conditions.
