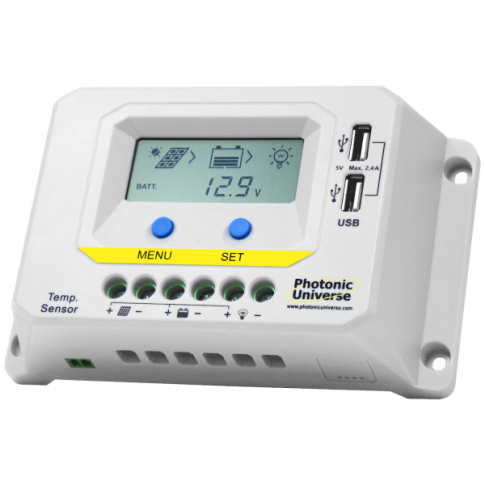

20A 12V/24V solar charge controller / regulator with LCD display and powerful dual USB output (2.4A)

Controller specifications:

• Fully automated operation and auto 12/24V selection
• Rated charge/discharge current: 20A
• Maximum solar panel input power: 320W (12V) / 640W (24V)
• Maximum solar panel input voltage 50V
• Temperature sensor for automatic compensation: -3mV/C/2V (25C)
• Working temperature: -25ºC to +55ºC
• Self-consumption: max. ≤9.2mA (12V); ≤11.7mA (24V)
• 3 pairs of terminals (solar, battery, optional load)
• Terminals for wire up to 10mm²
• Multiple mounting holes for ease of installation
• Size: 16 x 9.5 x 5 cm
• Weight: 350 g

This product is covered by a 1 year manufacturer warranty. For more information please refer to our Terms and Conditions.
