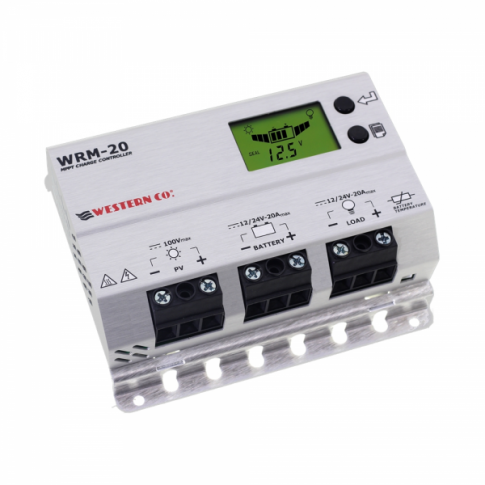

20A 12V/24V MPPT solar charge controller with LCD display for vehicles, boats, lighting and off-grid solar systems

Controller specifications:

• Advanced MPPT technology to maximise system efficiency
• Fully automated 12V/24V operation
• 3 pairs of terminals (input, battery, load) for wires up to 10mm2
• Maximum solar input: 310W (12V battery) / 620W (24V battery) up to 100V
• Battery temperature sensor with automatic compensation (-24mV/C)
• Comprehensive electronic protection features
• Self-consumption: 12.7mA
• Working temperature: -10C to +50C
• Unit Dimensions: 154 x 130 x 53 mm (including mounting edges)
• Mounting area dimensions: 134 x 122 mm
• Weight: 515g
• Mounting holes for ease of installation

This product is covered by a 5 year manufacturer warranty. For more information please refer to our Terms and Conditions.
