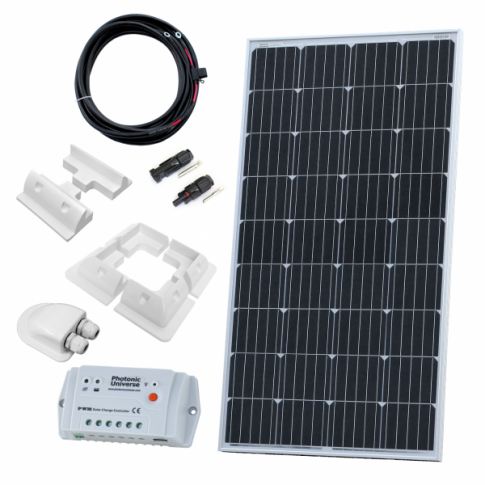

150W 12V solar charging kit with 10A controller, mounting brackets and cables

Solar panel specifications:

• Peak power: 150W
• Maximum power voltage: 20.2V
• Maximum power current: 7.43A
• Open circuit voltage: 23.9V
• Short circuit current: 7.89A
• Power allowance range: +/- 3%
• Dimensions: 124 x 67 x 3.5 cm
• Weight: 9.9 kg
• 4 mounting holes 9 x 14 mm
• 2 x 5m of high quality single core solar cable 4.0mm cross section
• Male and female MC4 connectors

Charge controller specifications:

• Rated current 10A
• Fully automated operation and auto 12/24V selection
• Wide solar input voltage range up to 50V
• 3 pairs of terminals (input, battery, output)
• LEDs to indicate charging, battery and load
• Temperature sensor for automatic compensation (-3mV/°C/2V)
• Over load protection (≥1.05 times the rated discharge current)
• Short circuit protection (≥2 times the rated discharge current)
• Over charge / discharge, overheating and other protection features
• Self-consumption: ≤ 8.4mA (12V) / ≤ 7.8mA (24V)
• Working temperature: -35C to +50C
• Terminals for wires up to 4mm2
• Size: 13.8 x 6.9 x 3.7 cm
• Weight: 130 g
• Multiple mounting holes for ease of installation

Corner brackets specifications:

•     Material: plastic
•     Colour: white
•     Size: each corner bracket 15 x 15 x 6.5 cm, each side bracket 18 x 9 x 6.5 cm, cable gland 11 x 9 x 4 cm
•     Weight: (4 brackets): 1.6kg

Please note: due to our warehouse arrangements, the solar charge controller and accessories may be shipped from a different warehouse to the solar panel and therefore delivered in a separate package.

This product is covered by a 1 year warranty (including a 1 year warranty for the solar charge controller, and 1 year workmanship warranty for the solar panel). For more information please refer to our Terms and Conditions.

In addition, solar cells are guaranteed to produce at least 90% of nominal power in 10 years after purchase and at least 80% of nominal power in 25 years after purchase. This warranty is provided by the manufacturer of solar cells.

For installation advice please click on the Installation tab.
