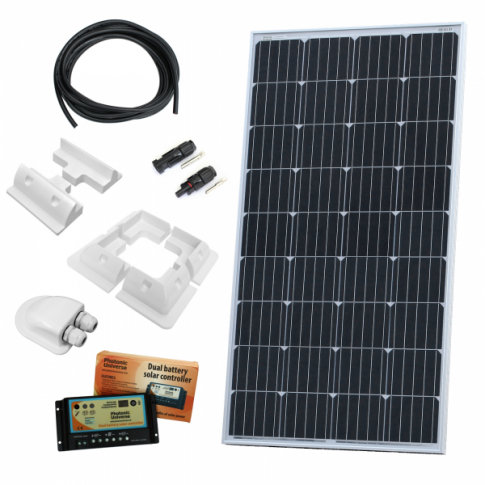

150W 12V dual battery solar charging kit with 10A controller, mounting brackets and cables

Solar panel specifications:

• Peak power: 150W
• Maximum power voltage: 20.2V
• Maximum power current: 7.43A
• Open circuit voltage: 23.9V
• Short circuit current: 7.89A
• Power allowance range: +/- 3%
• Dimensions: 124 x 67 x 3.5 cm
• Weight: 9.9 kg
• 4 mounting holes 9 x 14 mm
• 2 x 5m of high quality single core solar cable 4.0mm cross section with MC4 connectors

Charge controller specifications:

• Fully automated operation selection
• 3 pairs of terminals (input, battery 1, battery 2)
• LEDs to indicate state of charge
• Temperature sensor for temperature compensation of charging (-30mV/C/12V)
• Additional connection point for a remote temperature sensor (not included)
• RJ-45 connection point for a remote meter (not included)
• Various protection features (over charge, short circuit, reverse polarity etc)
• Self-consumption: 4mA at night, 10mA when charging
• Working temperature: -35C to +55C
• Terminals for wire up to 4.0mm2
• Size: 15.5 x 7.6 x 4.0 cm
• Weight: 185 g
• Multiple mounting holes for ease of installation

Mounting accessory specifications:

• Material: plastic
• Colour: white
• Cable diameter for the cable gland: 3-7mm
• Size: each corner bracket 15 x 15 x 6.5 cm, each side bracket 18 x 9 x 6.5 cm, cable gland 11 x 9 x 4 cm
• Combined weight: 2.7kg

Please note: due to our warehouse arrangements, the solar charge controller and accessories may be shipped from a different warehouse to the solar panel and therefore delivered in a separate package.

This product is covered by a 1 year warranty (including a 1 year warranty for the solar charge controller, and 1 year workmanship warranty for the solar panel). For more information please refer to our Terms and Conditions.

In addition, solar cells are guaranteed to produce at least 90% of nominal power in 10 years after purchase and at least 80% of nominal power in 25 years after purchase. This warranty is provided by the manufacturer of solar cells.

For installation advice please click on the Installation tab.
