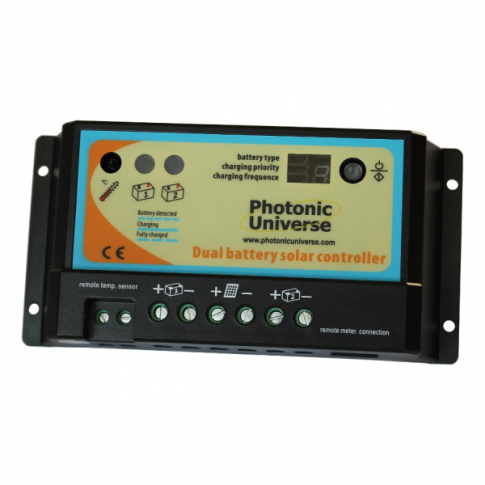

10A dual battery solar charge controller / regulator for 12V / 24V batteries

Controller specifications:

• Fully automated operation and auto 12/24V selection
• Maximum solar input power: 160W (12V system) / 320W (24V system)
• Maximum solar input voltage: 30V (12V system) / 55V (24V system)
• 3 pairs of terminals (input, battery 1, battery 2)
• LEDs to indicate state of charge
• Temperature sensor for temperature compensation of charging (-30mV/C/12V)
• RJ-45 connection point for a remote meter (not included)
• Various protection features (over charge,short circuit, reverse polarity etc)
• Self-consumption: 4mA at night, 10mA when charging
• Working temperature: -35C to +55C
• Terminals for wire up to 4.0mm2
• Size: 15.5 x 7.6 x 4.0 cm
• Weight: 185 g
• Multiple mounting holes for ease of installation

This product is covered by a 1 year warranty. For more information please refer to our Terms and Conditions.
