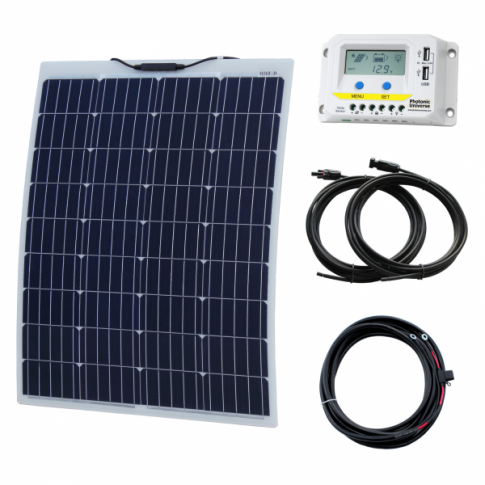

100W 12V Reinforced Semi-flexible solar charging kit

 Solar panel specifications:

• Peak power: 100W
• Maximum power voltage: 20.2V
• Maximum power current: 4.95A
• Open circuit voltage: 23.9V
• Short circuit current: 5.25A
• Power allowance range: +/- 5%
• Solar Panel Dimensions: 860 x 665 x 4 mm
• Junction Box Dimensions: 90 x 16 x 16 mm
• Weight: 3.65 kg
• 2 x 1m of high quality single core solar cable (4mm² cross section)
• Male and female MC4 connectors

Charge controller specifications:

• Fully automated operation and auto 12/24V selection
• Rated charge/discharge current: 10A
• Maximum solar panel input power: 160W (12V) / 320W (24V)
• Maximum solar panel input voltage 50V
• Temperature sensor for automatic compensation: -3mV/C/2V (25C)
• Working temperature: -25°C to +55°C
• Self-consumption: max. ≤9.2mA (12V); ≤11.7mA (24V)
• 3 pairs of terminals (solar, battery, optional load)
• Terminals for wire up to 4mm²
• Multiple mounting holes for ease of installation
• Size: 14.2 x 8.5 x 4.1 cm
• Weight: 220 g

Please note: due to our warehouse arrangements, the solar charge controller and accessories may be shipped from a different warehouse to the solar panel and therefore delivered in a separate package.

This product is covered by a 1 year workmanship warranty. We will repair or replace defective items at our discretion. For more information please refer to our Terms and Conditions.
