Victron Energy

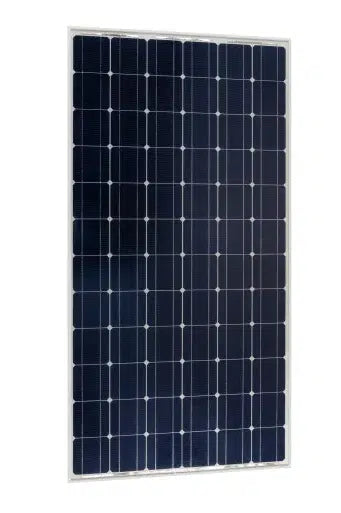

Victron Solar Panel 130W-12V Mono (SPM041301200)

Victron Solar Panel 130W-12V Mono (SPM041301200)

Regular price £75.99
Regular price £109.99 Sale price £75.99
Sale Sold out
Tax included. Shipping calculated at checkout.
Title

SKU:SPM041301200

Victron Solar Panel 130W-12V Monocrystalline (Series 4a)

The Victron Solar Panel 130W 12V Monocrystalline (Series 4a) is a premium, high-efficiency solar panel designed for off-grid renewable energy systems, campervans, motorhomes, boats, and residential solar installations. Built using high-quality monocrystalline cells, this panel delivers superior energy conversion efficiency, even in low-light environments, making it ideal for the UK's variable weather conditions.

Featuring a rugged anodised aluminium frame and impact-resistant tempered glass, the Victron 130W panel is engineered for maximum durability and longevity. Its advanced triple-layer EVA encapsulation and waterproof sealed junction box offer enhanced protection against moisture and extreme temperatures. With an impressive 25-year warranty on power output and a 5-year warranty on materials and workmanship, this panel guarantees long-term performance and peace of mind.

Additional features include integrated bypass diodes to minimise power loss caused by shading and pre-wired quick-connect MC4 (PV-ST01) connectors for a simple and reliable installation process. Whether for a solar-powered home, off-grid cabin, or mobile energy system, the Victron Solar Panel 130W 12V Monocrystalline (Series 4a) is a dependable and efficient choice for all your renewable energy needs.

Technical Specifications

Specification Details
Nominal Power (Pmpp) 130W
Max Power Voltage (Vmpp) 18.64V
Max Power Current (Impp) 6.98A
Open Circuit Voltage (Voc) 22.83V
Short Circuit Current (Isc) 7.35A
Cell Type Monocrystalline
Number of Cells 36
Maximum System Voltage 1000V
Temperature Range -40°C to +85°C
Surface Maximum Load 200 kg/m²
Allowable Hail Load 23 m/s, 7.53 g
Frame Material Anodised Aluminium
Dimensions 1200 x 668 x 30mm
Weight 8.8 kg
Warranty 25 years (power output), 5 years (materials)

Download the datasheet for Victron Solar Panel 130W-12V Monocrystalline (Series 4a) here.

For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
