Victron Energy

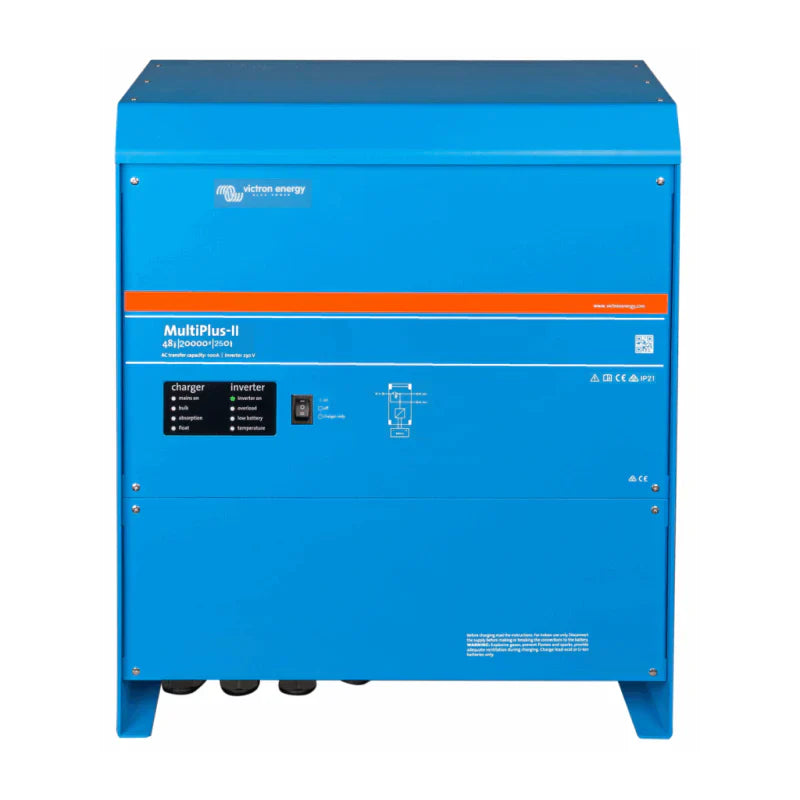

Victron MultiPlus-CL 48/20k/250-100 230V - PMC483200400
Victron MultiPlus-CL 48/20k/250-100 230V - PMC483200400
Couldn't load pickup availability
SKU:PMC483200400
Victron Energy MultiPlus 48/20000/250-100 230V Inverter Charger
The Victron Energy MultiPlus 48/20000/250-100 230V Inverter Charger combines a powerful pure sine wave inverter, advanced battery charger and high-speed transfer switch in a single unit. Designed for large off-grid solar systems, battery energy storage installations, backup power systems and commercial renewable energy projects, the MultiPlus delivers reliable power conversion and intelligent energy management.
With a continuous output of 20,000W and a powerful 250A charging capability, this high-performance inverter charger is ideal for demanding 48V battery systems, including modern lithium battery banks. The integrated 100A transfer switch automatically switches between mains and battery power, ensuring a seamless and uninterrupted power supply to critical loads.
The MultiPlus supports parallel and three-phase configurations, allowing systems to be expanded as energy requirements grow. When integrated with compatible solar PV systems and Victron GX monitoring equipment, excess solar energy can be utilised efficiently and exported to the grid where local regulations permit.
Key Features
- Combined inverter, battery charger and transfer switch in one compact unit
- 20,000W continuous power output
- 250A battery charger for rapid charging of 48V battery banks
- 100A internal transfer switch for uninterrupted power supply functionality
- Compatible with lithium, AGM, GEL and lead-acid batteries
- Supports parallel and three-phase installations
- Grid export capability when used within compatible solar energy systems
- Pure sine wave output suitable for sensitive electronics and appliances
- Wide AC input voltage range for reliable operation
- Advanced Victron integration and remote monitoring compatibility
Technical Specifications
| Specification | Value |
|---|---|
| Model | Victron Energy MultiPlus 48/20000/250-100 |
| Battery Voltage | 48V DC |
| Continuous Output Power | 20,000W |
| AC Output Voltage | 230V AC |
| AC Input Voltage Range | 187-265V AC |
| Maximum Charge Current | 250A |
| Transfer Switch Rating | 100A |
| DC Voltage Range | 38V - 66V |
| Battery Compatibility | Lithium, AGM, GEL and Lead-Acid |
| Parallel Operation | Yes |
| Three-Phase Operation | Yes |
| AC Terminals | M6 Threaded Bolts |
| DC Connection Terminals | 2 x Positive and 2 x Negative M8 Threaded Bolts |
The Victron MultiPlus 48/20000/250-100 is the ideal solution for large-scale off-grid power systems, solar battery storage installations, commercial backup power applications and advanced renewable energy projects requiring dependable power conversion and intelligent battery charging.
