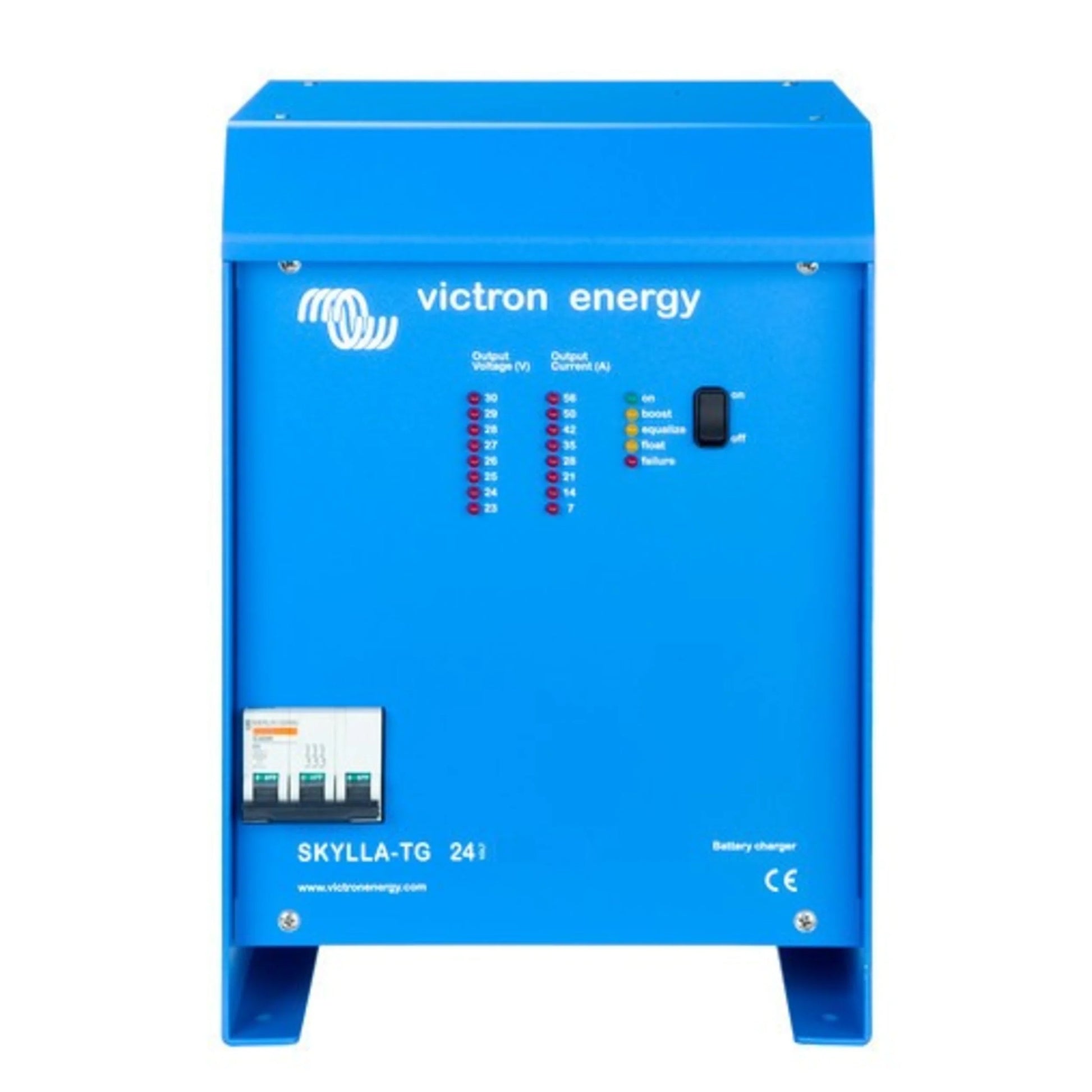

Victron Energy Skylla-TG 24/100 (1+1) 120/240V

Skylla TG Charger – Advanced Battery Charger for Optimal Performance

The Skylla TG Charger is the perfect solution for any type of battery, offering precise charge voltage adjustments to suit both sealed and unsealed battery systems. Designed to enhance battery life and performance, the Skylla TG Charger ensures your batteries are charged safely and efficiently. Whether for marine, industrial, or mobile applications, this charger provides reliability and advanced features to meet your energy needs.

Key Features of the Skylla TG Charger

Perfect for Any Battery Type

With precise charge voltage adjustment, the Skylla TG Charger protects batteries from overcharging and ensures long service life. This is especially crucial for sealed maintenance-free batteries, which can be damaged by overvoltage, leading to excessive gassing, venting, and failure.

Dual AC and DC Supply Compatibility

Except for 3-phase input models, the Skylla TG Charger accepts both AC and DC supply, making it suitable for a wide range of applications, including AC-DC and DC-DC operation.

Controlled 3-Step Charging

Equipped with a microprocessor, the Skylla TG Charger follows a precise IUoUo characteristic for controlled 3-step charging. This process ensures rapid and efficient charging compared to conventional methods.

Power Supply Capability

Thanks to its stabilised output voltage, the Skylla TG Charger can also function as a power supply when batteries or large buffer capacitors are not available.

Dual Outputs for 24V Models

The 24V Skylla TG Chargers feature two isolated outputs, allowing you to charge two separate battery banks. The second output, limited to approximately 4A and with a slightly lower voltage, is designed to top up a starter battery.

Temperature Compensation for Battery Longevity

Each Skylla TG Charger comes with a battery temperature sensor. This sensor automatically reduces charge voltage as battery temperature increases, preventing overcharging and extending the lifespan of sealed batteries.

Battery Voltage Sense

To compensate for voltage loss due to cable resistance, the charger includes a voltage sense facility, ensuring the battery always receives the correct charge voltage for optimal performance.

Technical Specifications

Download the datasheet for the Skylla TG Charger here.

For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
