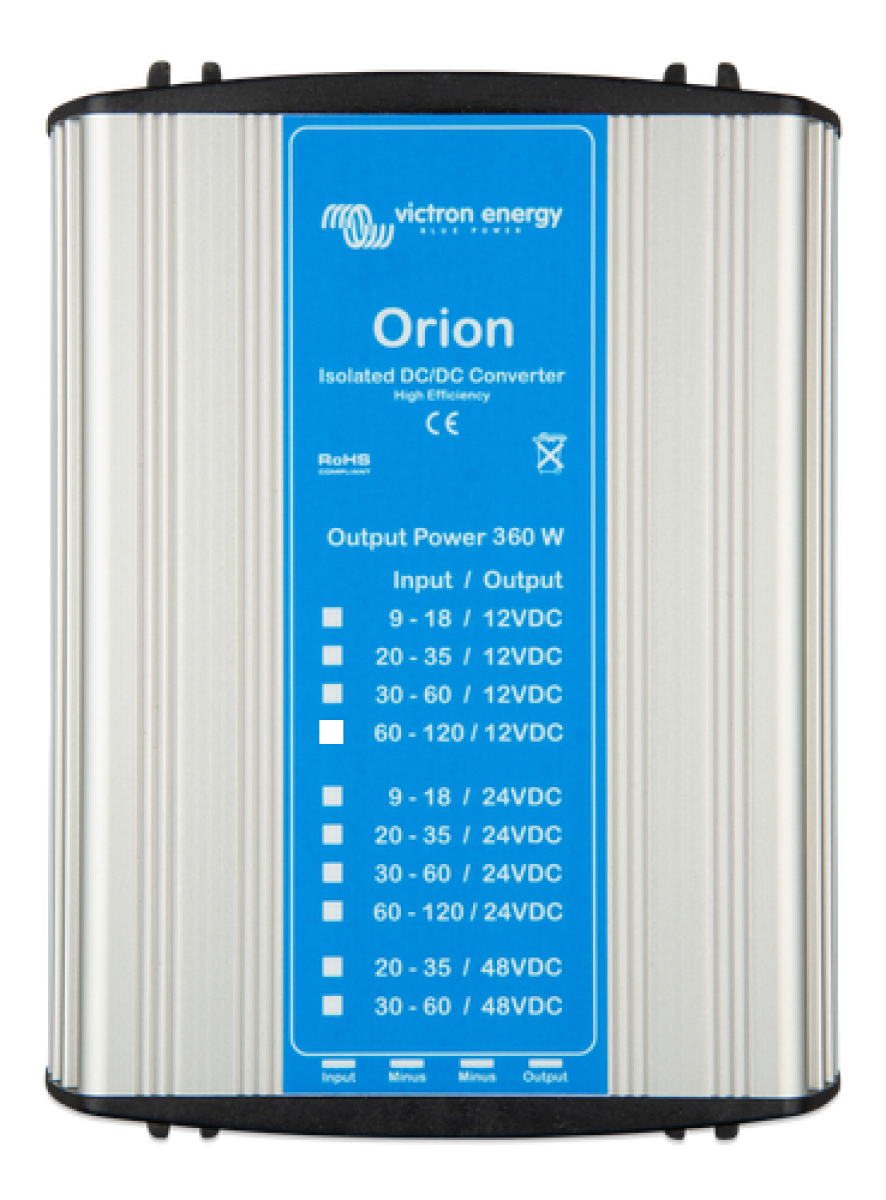

Victron Energy Orion 110/12-30A (360W)
Victron Energy Orion 110/12-30A (360W)
Couldn't load pickup availability
SKU:ORI110123610
Victron Orion DC-DC Converters 110V, Isolated – Reliable Power Conversion with Galvanic Isolation
The Victron Orion 110V DC-DC Converters are professional-grade isolated converters designed for high-performance power conversion. With a power rating of 360W and galvanic isolation, these converters ensure safe, reliable, and efficient operation in demanding environments. Built with anodised aluminium casing and fan-assisted cooling, they deliver stable output voltage with excellent efficiency and durability.
Key Features of the Orion DC-DC Converters 110V, Isolated
Galvanic Isolation for Enhanced Safety
The galvanic isolation eliminates electrical continuity between the input and output, providing protection against ground loops and enhancing system safety.
Stable and Reliable Output
With a stable output voltage (±2% stability, ±3% tolerance) and minimal noise (<50mV rms), these converters deliver consistent performance for sensitive electronic systems.
Robust Design
Constructed with anodised aluminium and designed for tough environments, the Orion 110V converters feature fan-assisted temperature-controlled cooling, ensuring a temperature rise of only 30°C even at full load after 30 minutes.
Flexible Input and Output Voltage
Operating within a wide input voltage range of 60–140V DC, the converters provide output voltage options of 12.5V or 24V, making them versatile for various applications.
Comprehensive Protection
The Orion 110V DC-DC Converters are equipped with multiple protection features, including:
- Overcurrent protection
- Overheating protection
- Reverse polarity connection
- Overvoltage protection
- Short circuit proofing
- Reduction of output voltage in fault conditions
Technical Specifications
| Feature | Specification |
|---|---|
| Power Rating | 360W |
| Galvanic Isolation | Yes |
| Input Voltage | 110V (60 – 140V DC) |
| Output Voltage | 12.5V or 24V |
| Efficiency | Approximately 85% |
| Operating Temperature | -20°C to +40°C (derate linearly to 0A at 70°C) |
| Case Material | Anodised Aluminium |
| Dimensions (HxWxD) | 82 x 132 x 190 mm (3.2 x 5.2 x 7.5 inches) |
| Weight | 1.4kg (3.1lbs) |
| Humidity | Max 95% non-condensing |
Standards and Compliance
The Orion 110V DC-DC Converters comply with the following standards:
- Safety: EN 60950
- Emission: EN 61000-6-3, EN 55014-1
- Immunity: EN 61000-6-2, EN 61000-6-1, EN 55014-2
Download the datasheet for the Victron Orion DC-DC Converters 110V, Isolated here.
For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
