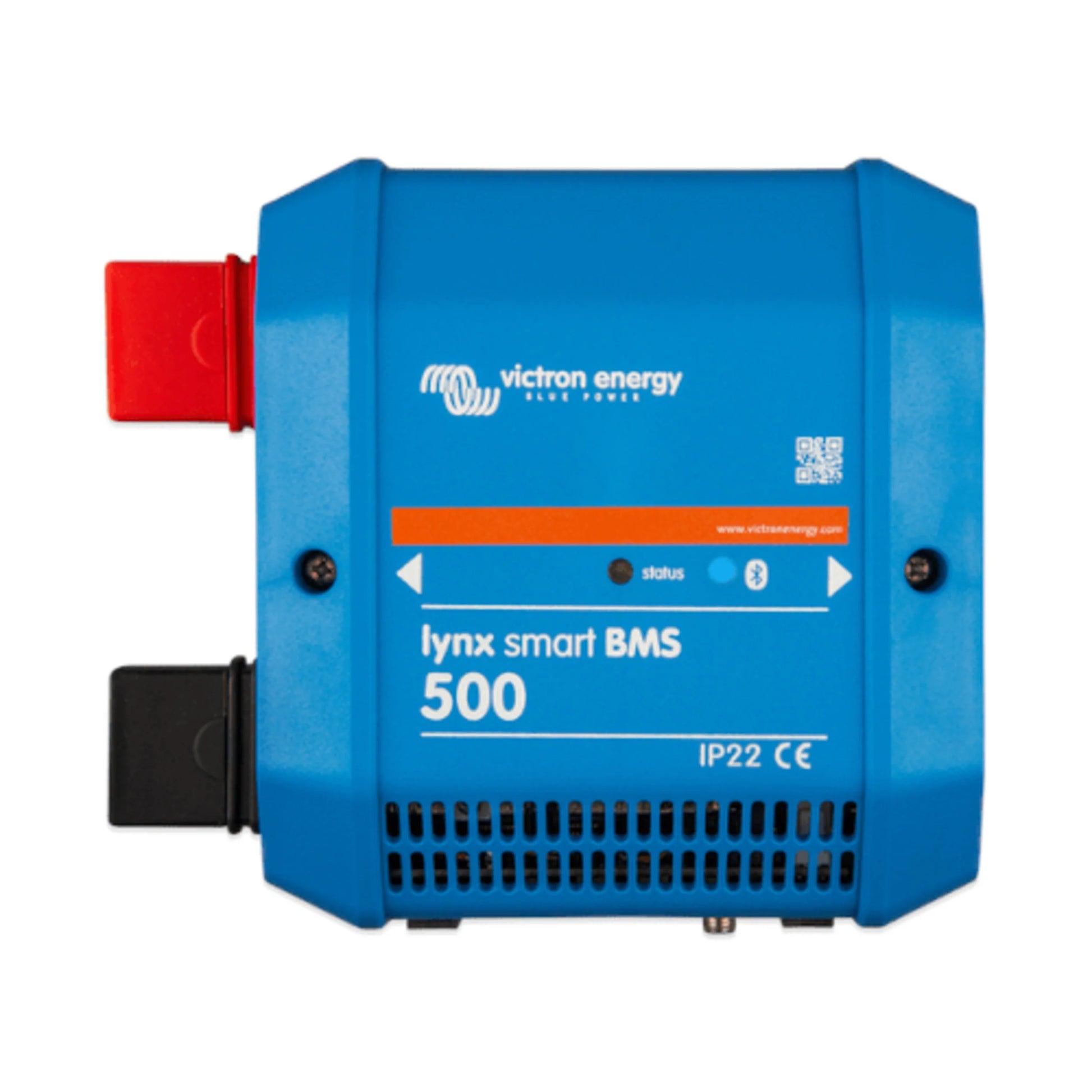

Victron Energy Lynx Smart BMS 500 (M8)

Victron Lynx Smart BMS (M8) LYN034160200 – Advanced Battery Management System for Lithium Smart Batteries

The Victron Lynx Smart BMS is a comprehensive and feature-rich Battery Management System (BMS) designed specifically for Victron Lithium Smart Batteries. As part of the modular Lynx Distribution system, the Lynx Smart BMS offers advanced monitoring, control, and safety features, making it the ideal solution for managing your lithium battery system. Available in two models—500A (M8 connections) and 1000A (M10 connections)—it provides flexibility for various system requirements.

Key Features of the Victron Lynx Smart BMS

Built-In Contactor

The Lynx Smart BMS includes a built-in 500A or 1000A contactor, which serves as a fallback safety mechanism. It can also function as a remote-controllable main system switch, offering enhanced control and safety for your energy system.

Battery Monitoring

Integrated battery monitoring provides detailed insights, including the state of charge (SOC) percentage and other key battery data. This ensures optimal system performance and helps prevent issues caused by over-discharge or overcharging.

Pre-Alarm Signal

A pre-alarm signal is included to warn users of potential issues, such as low cell voltage, before the system shuts down. This proactive feature allows for timely corrective action to protect your batteries and connected devices.

Bluetooth and VictronConnect App

With built-in Bluetooth, the Lynx Smart BMS is compatible with the VictronConnect app. Users can set up and monitor the system, as well as view Instant Readout data for quick and convenient access to key information.

Local and Remote Monitoring

The Lynx Smart BMS supports local and remote monitoring via Victron GX devices such as the Cerbo GX or Ekrano GX. This provides detailed system oversight and allows for remote adjustments and troubleshooting.

Part of the Lynx Modular System

The Lynx Smart BMS integrates seamlessly into the modular Lynx Distribution system, making it easy to combine with other Lynx components like the Lynx Distributor and Lynx Power In for a clean and organised DC setup.

Model Options

• 500A Model: Equipped with M8 busbar connections
• 1000A Model: Equipped with M10 busbar connections

Why Choose the Victron Lynx Smart BMS?

• Comprehensive battery management for Victron Lithium Smart Batteries
• Built-in contactor for safety and remote control
• Integrated monitoring for SOC and critical battery data
• Bluetooth-enabled for use with the VictronConnect app
• Pre-alarm signal for proactive issue prevention
• Compatible with Victron GX devices for local and remote monitoring
• Part of the modular Lynx DC Distribution system

Download the datasheet for the Victron Lynx Smart BMS here.
